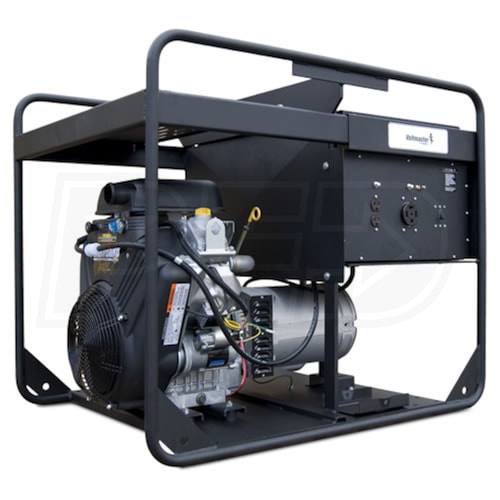

Voltmaster LR180V-208 - 15,000 Watt Electric Start Portable Generator (208V - 3-Phase)

Model:

LR180V-208

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Voltmaster LR180V-208 - 15,000 Watt Electric Start Portable Generator (208V - 3-Phase)
Voltmaster LR180V-208 - 15,000 Watt Electric Start Portable Generator (208V - 3-Phase)
Model: LR180V-208
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

15,000 Rated Watts

Surge Watts

15,000
Starting Watts

Fuel

Gasoline

Engine

Briggs and Stratton Vanguard

  • 208-Volt Three Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • Briggs & Stratton Vanguard Engine
  • Powerful 31-HP engine starts easily & runs smoothly
  • Electric Start (Battery Sold Separately)
  • Includes battery rack & cables
  • Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
  • Provides added protection
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 18-Gallon Fuel Tank Provides Extended Run Time
  • 11.5 hours @ half load & 7.2 hours @ full load
  • All Copper Windings, Brush Alternator
  • Provides <6% harmonic distortion
  • Added Features
  • 1" Welded steel roll cage
  • Isolated and recessed control panel
  • Magnetic circuit breakers
  • Plugs for 3-Phase receptacles
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 18-60R
LR180V-208
specs product image PID-5758
Overview
Weight
478 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
41.5 Inches
Product Width
32 Inches
Product Height
35 Inches
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
15000 Watts
Surge Watts
15000 Watts
Fuel Type
Gasoline
Rated Amps
52 Amps
Tank Size
18 Gallons
Run Time @ 50% Load
11.5 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
84 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
31 HP
CC
895 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 18-60R
1
