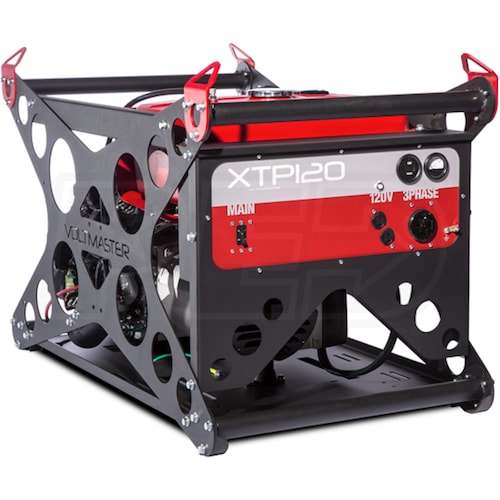

Voltmaster XTP120EH-208 - 12,000 Watt Electric Start Professional Generator w/ Honda GX (120/208V 3-Phase)
Model:
XTP120EH-208
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
12,000 Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Gasoline
Engine
Honda GX
- Votlmaster XTP Series 120/208V 3-Phase Generator
- Perfect for powering commercial/industrial motors, boilers, etc.
- 688cc Honda® GX660 OHV Commercial-Grade Engine
- Powerful 21-HP engine starts easily & runs smoothly
- Electric Start (Battery NOT Included)
- Provides effortless starting on the job site
- Protected By Honda Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Automatic Voltage Regulator
- Prevents equipment damage & power related performance problems
- 7.25-Gallon Extended Run Steel Fuel Tank
- Allows for up to 6.2 hours of power@ 1/2 load
- Magnetic CB & Brush Alternator w/ All Copper Windings
- Provides safer operation & clean power; <6% harmonic distortion
- Voltmeter & Hour Meter
- Allows you to easily monitor and maintain your generator
- Modular Design & Heavy Duty Frame
- Provides greater protection for the engine & components
- Side Control Panel For Easy Opeartion When Truck Mounted
- 1-Year Consumer/30-Day Commercial Warranty
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
XTP120EH-208
Overview
Weight
330 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
30 Days
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
42 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
HP
21 HP
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
