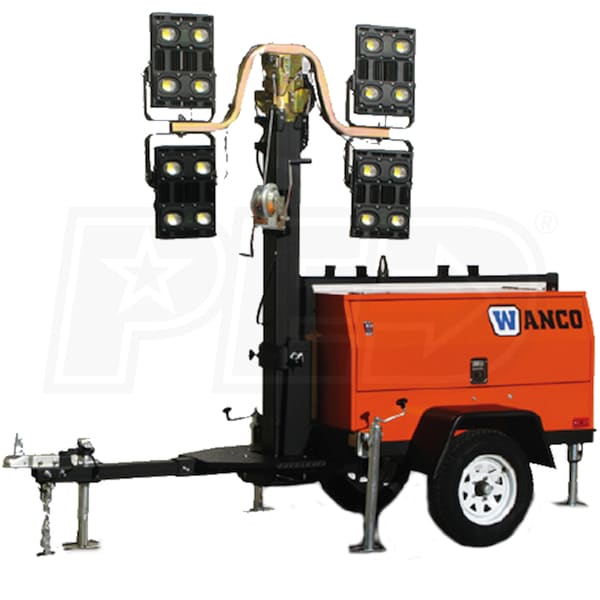

Wanco 6kW Towable Diesel Standard Vertical LED Light Tower w/ Kubota D-1005 Engine
Model:
WLT-4MK106KVL-LED
+
Share This Product
Features
Grade
Professional
Style
Tow-Behind
Run Watts
6,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Kubota
- Wanco 6kW Diesel Powered Standard Vertical LED Light Tower
- State-of-the-art technology to achieve superior illumination
- 4 x 480-Watt LED CCD 5000 Kelvin Fixtures (5700 Lumens / Per Lamp)
- Solid, durable glass lenses allow for uniform light distribution
- Each light fixture can be aimed independently without the use of tools
- 30' Variable-Height Telescoping Vertical Tower Mast
- Hand-operated, single-winch design allows for faster set-up and less downtime
- Rotates 360° for optimum lighting at any height
- 916cc Liquid-Cooled 3-Cylinder Kubota D-1005 Diesel Engine (Tier 4 Compliant)
- Fuel efficient design runs at 1800 RPM for long engine life
- E-TVCS (Three Vortex Combustion System) for cleaner and quite power
- Glow-plug preheat system for increased service life & better cold-weather starting
- Automatic Engine Shutdown System
- For added protection against low oil pressure and high coolant temperature
- Brushless Alternator
- For long life and low maintenance while providing <5% THD
- User-Friendly Control Panel
- Makes it simple to track elapsed time
- 30-Gallon Translucent Polyethylene Internal Fuel Tank
- Instantly view fuel level, eliminating the need for fuel gauge
- Provides extended run times of up to 100 hours
- Exclusive Hinged Top Panel & Gull-Wing Side Doors
- Provides easy access to engine, generator & electrical components
- Lockable, weather-resistant powder-coated steel enclosure
- Single Axle Trailer
- Two outriggers & four leveling jacks provide increased stability
- Combination 2" Ball / 3" Pintle Hitch standard
- Generator Warranty 2 Years / 2000 Hours - Engine 1 Year
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
![NEMA 5-20R (GFCI)](/images/plug_image8.jpg)
WLT-4MK106KVL-LED
![specs product image PID-80126](/products-image/150/WLT-4MK106KVL-LED_80126_600.jpg)
Overview
Weight
1990 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Light Tower
Product Length
134 Inches
Product Width
54 Inches
Product Height
106 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
6000 Watts
Fuel Type
Diesel
Tank Size
30 Gallons
Run Time @ 50% Load
65 Hours
Fuel Tank Material
Plastic Resin
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71
Hour Meter
Yes
Battery
Included (550 CCA)
Enclosure
Steel
Fuel Consumption
.286 gallons/hr
Cooling System
Liquid Cooled
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
916 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
1
