Features
Grade
Professional
Style
Tow-Behind
Run Watts
4,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Perkins

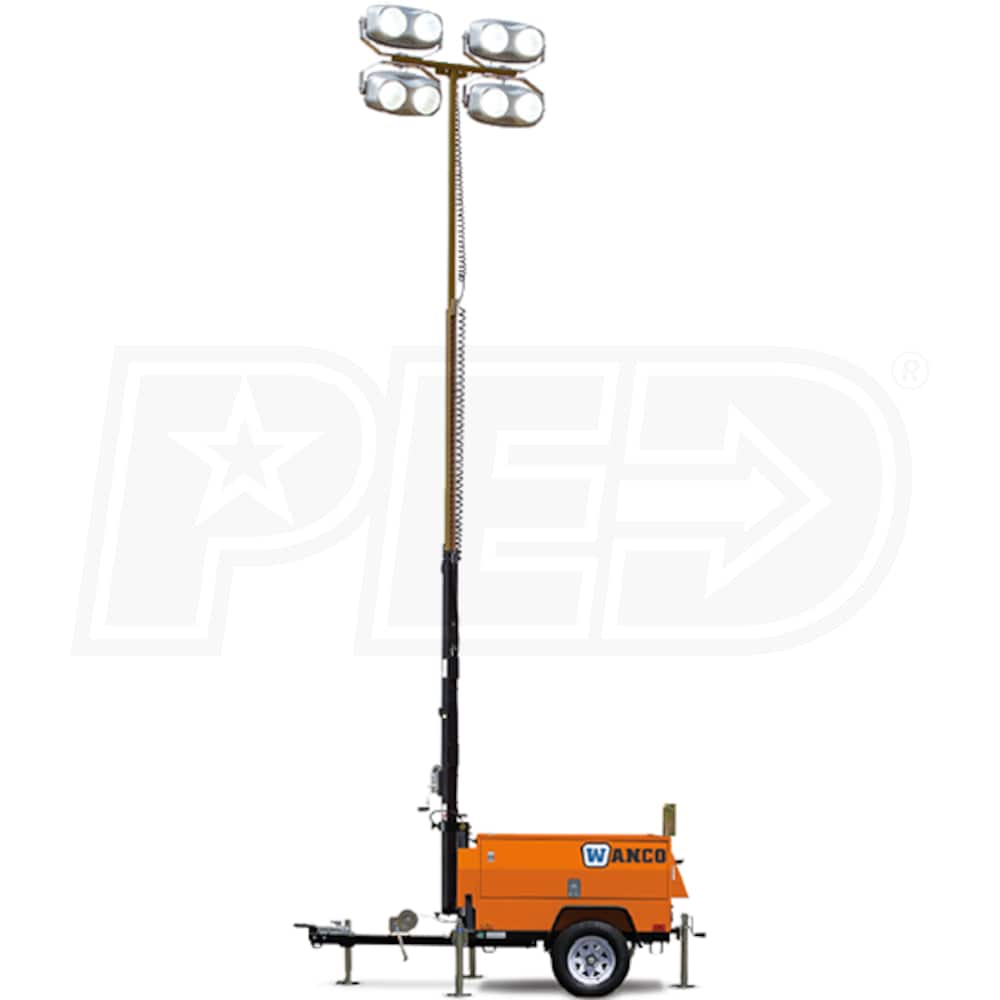

- Wanco 4kW Diesel Powered Long-Run LED Light Tower
- Make it brighter. Use less fuel. Save big!
- 4x 400-Watt Industrial-Grade LED Fixtures (5000 Lumens / Per Lamp)
- Provides more realistic illumination w/ 6500K color temperature (Daylight)
- Instant-On, full intensity design and a 50,000-hour lifespan for less maintenance
- 30' Variable-Height Double-Reinforced Telescoping Tower Mast
- Hand-operated, dual-winch design makes it easy to raise and extend the mast
- Rotates 360° for optimum lighting at any height
- 760cc Perkins 3-Cylinder Liquid-Cooled Diesel Engine (Tier 4 Compliant)
- Fuel efficient design runs at 1800 RPM for long engine life
- Properly sized for LED lights and prevents wet stacking for maximum efficiency
- Glow-plug preheat system for increased service life & better cold-weather starting
- 54-Gallon, Steel Fuel Tank w/ Extra-Large Filler Neck
- Provides up to 225-hours of run time (.24 Gallons / Hour)
- Illuminated electric fuel gauge for easier viewing
- Automatic Engine Shutdown System
- For added protection against low oil pressure and high coolant temperature
- Brushless Alternator
- For long life and low maintenance while providing <6% THD

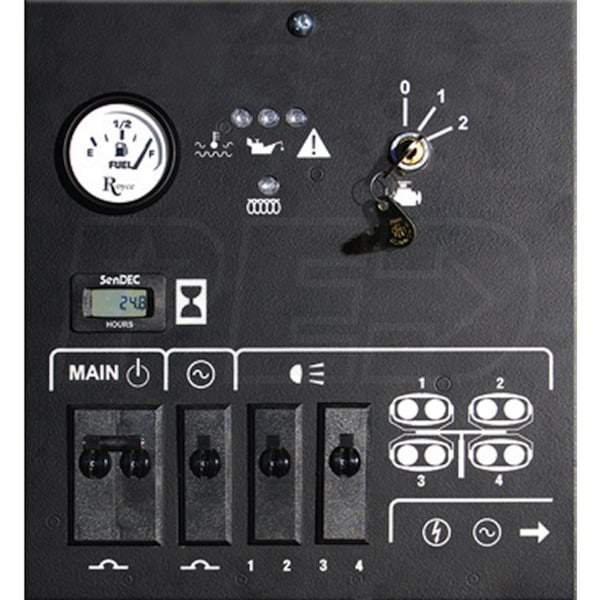

- User-Friendly Control Panel
- Makes it simple to track elapsed time
- Individual circuit breakers for lights and main power for added protection
- Plus a circuit breaker protected convenience outlet for more power options

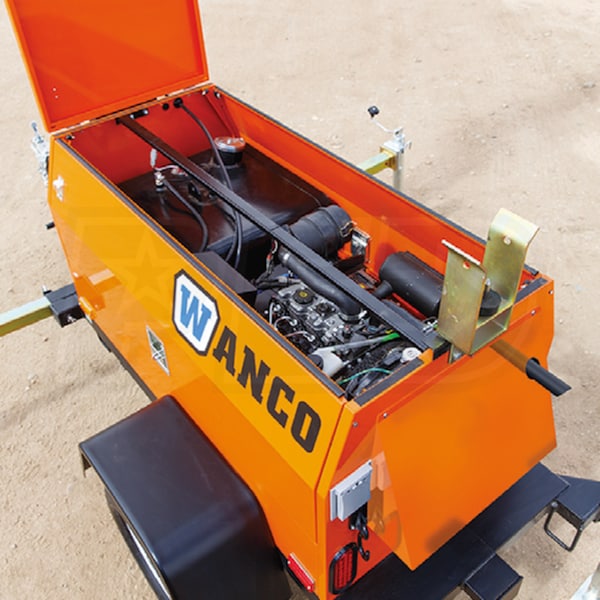

- Exclusive Hinged Top Panel & Gull-Wing Side Doors
- Provides easy access to engine, generator & electrical components
- Lockable, weather-resistant powder-coated steel enclosure
- Single Torsion Axle Trailer
- Two outriggers & five leveling jacks provide increased stability
- Combination 2" Ball / 3" Pintle Hitch standard
- Generator Warranty 2 Years / 2000 Hours - Engine 1 Year
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
![NEMA 5-20R (GFCI)](/images/plug_image8.jpg)
WLTL
![specs product image PID-80129](/products-image/150/WLTL_80129_600.jpg)
Overview
Weight
2165 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Light Tower
Product Length
170 Inches
Product Width
55 Inches
Product Height
69 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
4000 Watts
Fuel Type
Diesel
Tank Size
54 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58
Hour Meter
Yes
Battery
Included
Enclosure
Steel
Fuel Consumption
.24 gallons/hr
Cooling System
Liquid Cooled
Grade Type
Professional
Engine
Engine Brand
Perkins
Starting System
12-Volt Button Start
HP
24.8 HP
CC
760 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
