Westinghouse WGen20000c - 20,000 Watt Electric Start Portable Generator w/ CO Sensor & Wireless Remote Start (49-State)
Model:
WGEN20000C
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
20,000 Rated Watts
Surge Watts
28,000
Starting Watts
Fuel
Gasoline
Engine
Westinghouse
- Westinghouse WGen20000C Portable Generator
- Designed for backing up your home during a power outage
- Carbon Monoxide Sensor
- Shuts the generator down when unsafe levels of CO are present

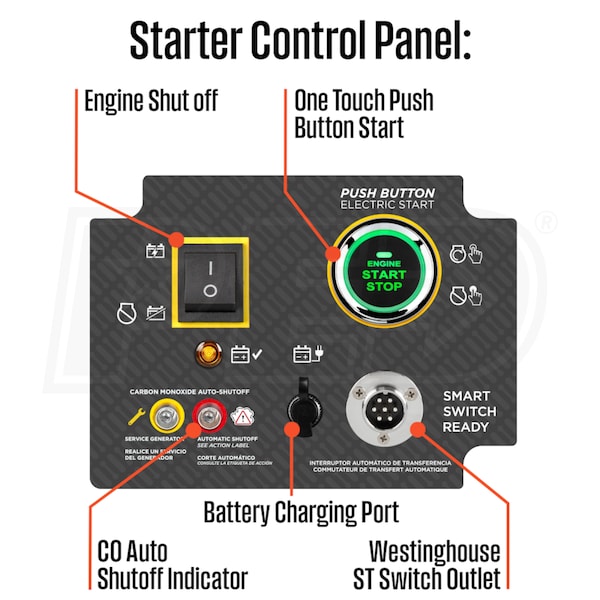

- Electric Start (Battery Included) w/ Wireless Remote
- Auto-choke design makes starting an easy task
- Automatic Voltage Regulator (AVR) - Sine Wave Output
- Less than 5% Total Harmonic Distortion
- Provides safe and clean power for electronics
- Smart Idle Control
- Reduces engine RPM when no load is present
- Decreases fuel use and lowers noise levels
- 999cc Westinghouse V-Twin 4-Cycle Engine
- Cast iron sleeve provides longer engine life
- Designed for easier starting and fuel-efficient operation
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 17.2-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 10.5-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator

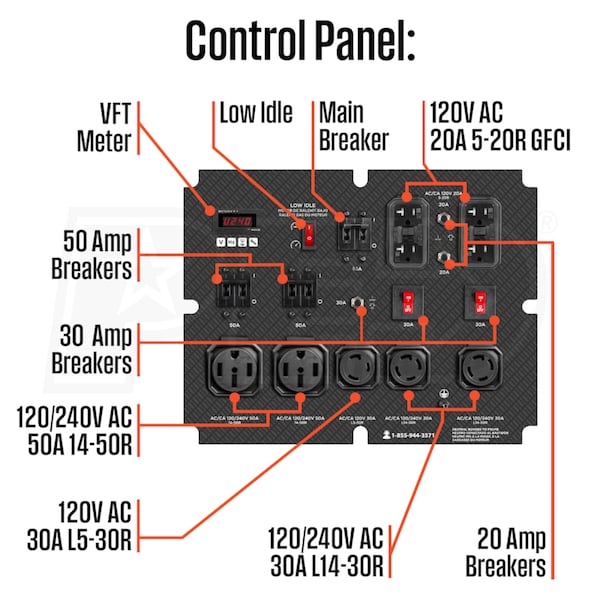

- 50-Amp 120/240V (14-50R) Receptacles
- Allows you to get maximum power from the generator
- 30-Amp 120/240V (L14-30R) Receptacles
- Great for powering high amp-draw equipment
- VFT Meter
- Displays Volts, Hz & lifetime hours
- 12" Solid Wheels & Fold-Down Handles
- Allows for easy movement over uneven terrain
- Includes Lifting Bracket
- Ideal for lifting the generator on the job site
- Added Extras:
- Oil, funnel, tool kit, battery charger & Quick Start Guide
- 3-Year Residential & 1-Year Commercial Warranty
- Also includes Lifetime Technical Support
- EPA / Non-CARB Compliant - Not For Sale In California
Specifications
Plug Types
WGEN20000C
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
541.1 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
38 Inches
Product Width
35 Inches
Product Height
40.4 Inches
UPC
850032657259
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
20000 Watts
Surge Watts
28000 Watts
Fuel Type
Gasoline
Rated Amps
83.3 Amps
Portability Kit
Never Flat Wheels
Tank Size
17.2 Gallons
Run Time @ 50% Load
10.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Emergency
CO Sensing
Yes
Low THD
Yes
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start + Remote
CC
999 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
3
NEMA 14-50R
2
