Westinghouse WGen9500 - 9500 Watt Electric Start Portable Generator w/ GFCI Protection & Wireless Remote Start (CARB)

Model:

WGEN9500

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Westinghouse WGen9500 - 9500 Watt Electric Start Portable Generator w/ GFCI Protection & Wireless Remote Start (CARB)
Westinghouse WGen9500 - 9500 Watt Electric Start Portable Generator w/ GFCI Protection & Wireless Remote Start (CARB)
Model: WGEN9500
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

9,500 Rated Watts

Surge Watts

12,500
Starting Watts

Fuel

Gasoline

Engine

Westinghouse

  • Westinghouse WGen9500 Electric Start Gas Powered Generator
  • Great for providing emergency backup around the house
  • Push Button Electric Start (Battery Included) w/ Wireless Remote
  • Allows for quick and easy starting
  • 457cc Westinghouse OHV 4-Cycle Engine
  • Designed for easier starting and fuel-efficient operation
  • Cast Iron sleeve helps extend engine life
  • Low Oil Shutdown
  • Helps prevent engine damage before it happens

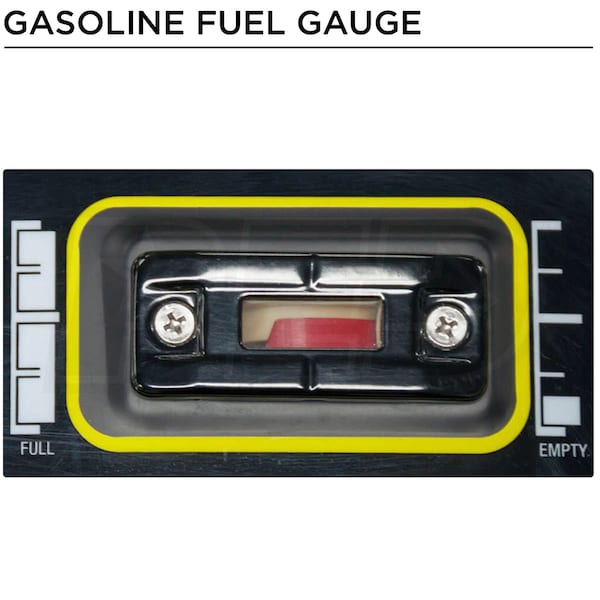

  • 6.6-Gallon Fuel Tank w/ Fuel Gauge
  • Provides up to 12-hours of run time @ 50% load
  • Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
  • Protects appliances & equipment from harmful voltage swings
  • Helps prevent overload to generator

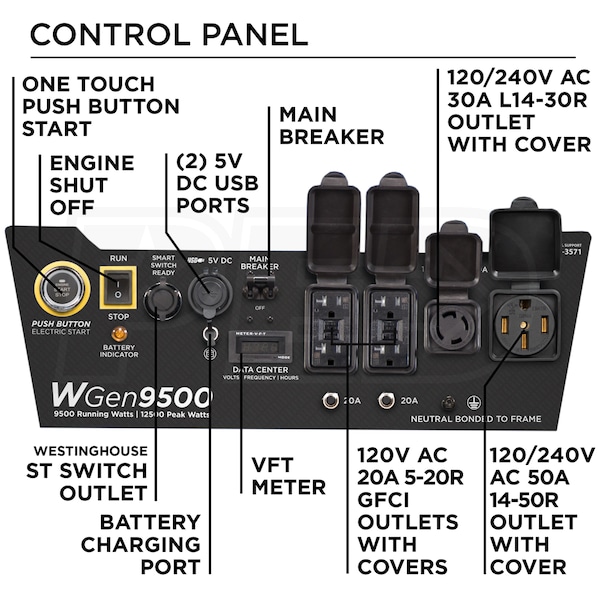

  • 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • VFT Meter
  • Displays Volts, Hz & lifetime hours
  • Outlet Covers
  • Keeps out moisture and debris when outlets are not being used
  • 10" Solid Wheels & Single Fold-Down Handle
  • Allows for easy movement over uneven terrain
  • Added Extras:

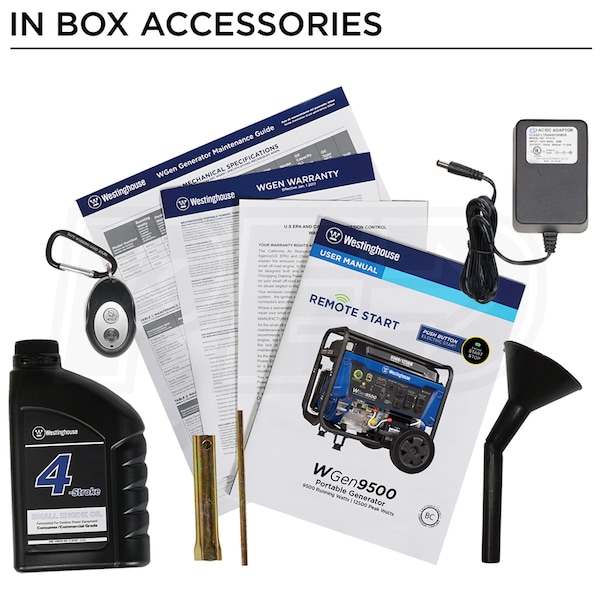

  • Oil, funnel, tool kit, and Quick Start Guide
  • 3-Year Residential Warranty and Lifetime Technical Support
  • EPA / CARB Compliant
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
WGEN9500
specs product image PID-95393
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
220 Pounds
CARB Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.2 Inches
Product Width
26.5 Inches
Product Height
26 Inches
UPC
853544008199
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9500 Watts
Surge Watts
12500 Watts
Fuel Type
Gasoline
Rated Amps
35.5 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Low THD
No
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
457 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
