Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
12,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Honda GX

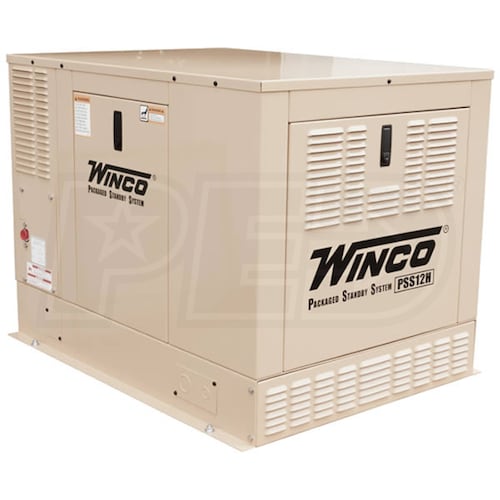

- Winco 12kw Emergency Standby Generator
- Now comes standard with "2-Wire" starting
- Operates On Clean Burning Natural Gas or Liquid-Propane (LP)
- Engineered for simple and easy field conversion
- 688cc Industrial-Grade Honda GX690 Engine
- V-Twin, Horizontal design provides smoother power over single cyl. engines
- Pressurized lubrication system with spin-on oil filter
- Fast Response (Req. Automatic Transfer Switch - Not Included)
- Fast automatic response to power outages in less than 30 secs.
- Brushless Alternator <5% Total Harmonic Distortion
- Provides near utility grade power safe for electronics
- Galvanneal Steel Housing w/ DuPont Powder Coat Paint
- Key-lockable, rodent-proof design, resists the elements
- Unique, 3-Chamber Housing Construction
- Increases air flow while reducing noise and heat
- Safety Shutdowns & Overcurrent Protection
- Provides added protection for the generator and load
- Also Includes Smart Battery Charger
- Prevents sulfation, increasing the reliability & service life of battery
- For Prime Power Derate By 20% - Please See Spec Sheet For Details
- 2-Year / 2000 Hours Warranty - EPA/CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
16400-056
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
502 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Product Style
Standby Generator
Product Length
40.15 Inches
Product Width
31.73 Inches
Product Height
30.37 Inches
Additional Model Numbers
ULPSS12H2W, 16400-056
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
140 ft³/hr
NG Fuel Consumption @ 100% Load
190 ft³/hr
LP Fuel Consumption @ 50% Load
1.4 gallons/hr
LP Fuel Consumption @ 100% Load
2.1 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66.8
Transfer Switch
Automatic (Not Included)
Battery
Not Included (500 CCA)
Enclosure
Steel
A/C Ton Rating
2-Tons
Mounting Pad
Concrete (Not Included)
Cooling System
Air Cooled
Grade Type
Emergency
Engine
Engine Brand
Honda GX
CC
688 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
