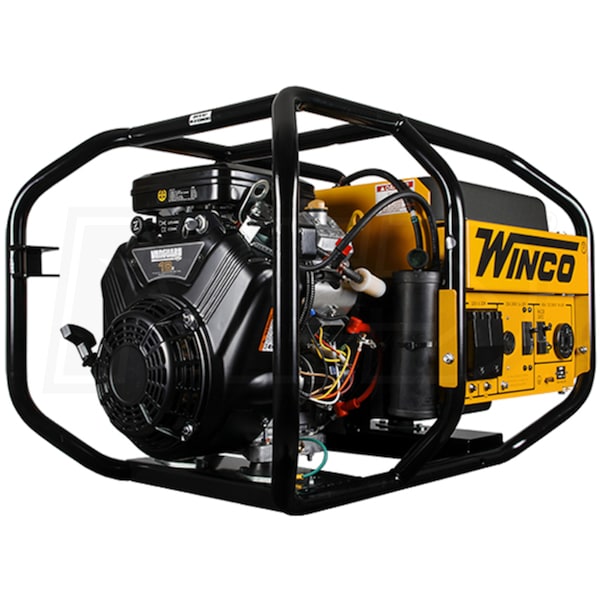

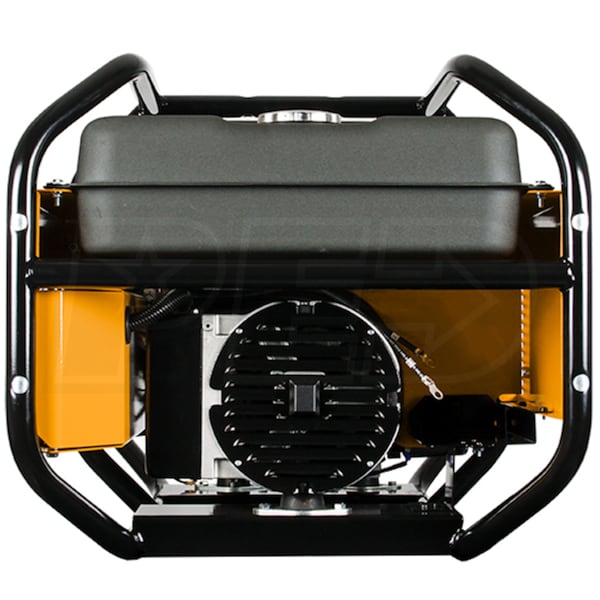

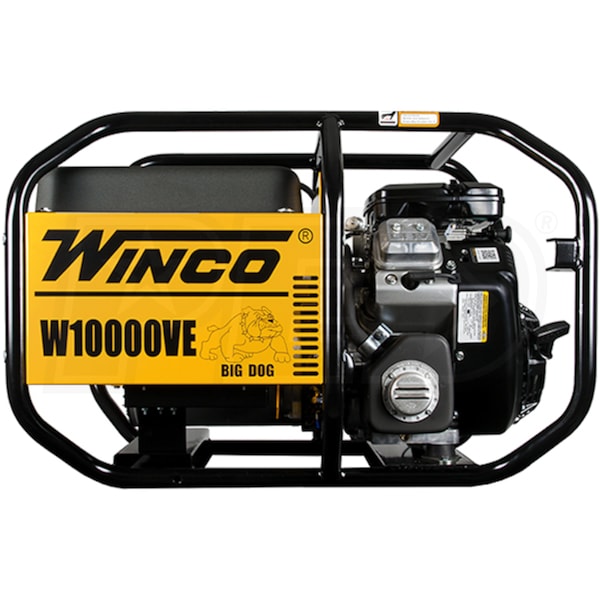

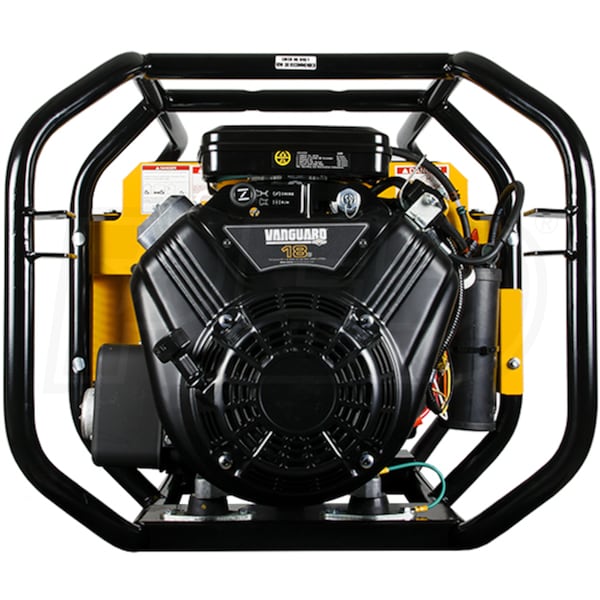

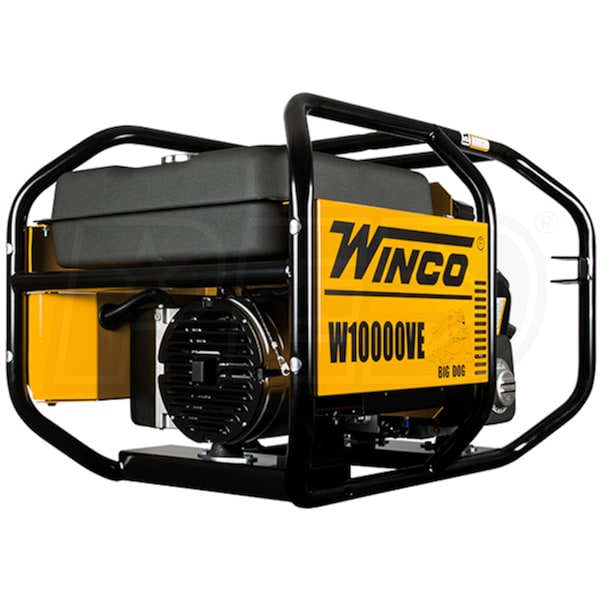

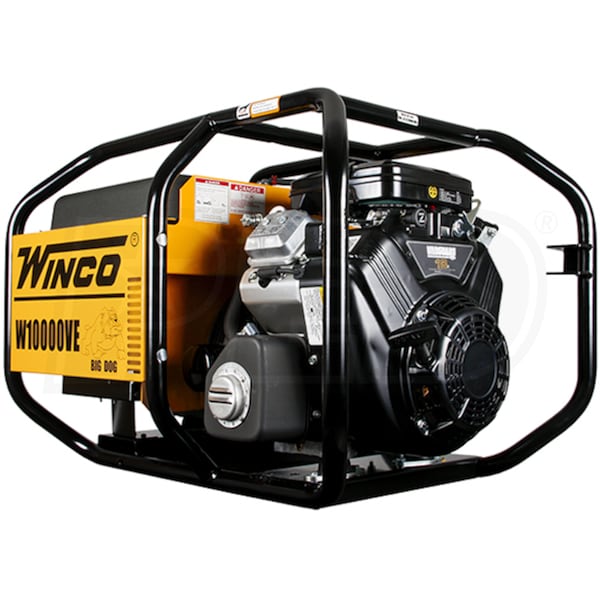

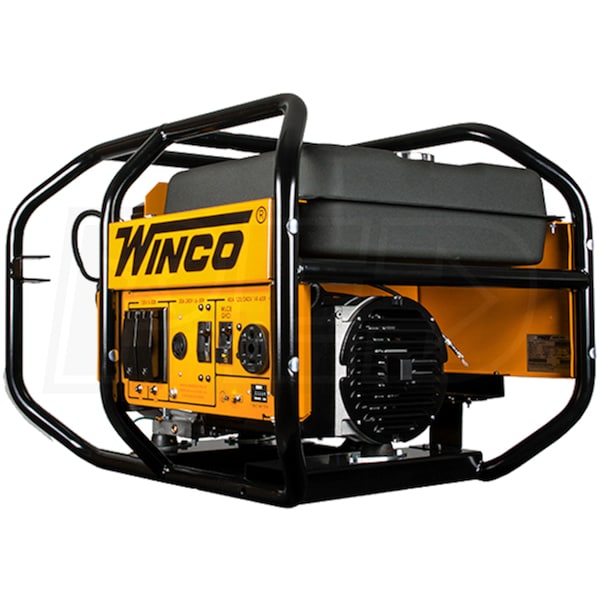

Winco W10000VE-03/B - 9600 Watt Electric Start Portable Generator (49-State)

Model:

24010-003

Write A Review
$3,670.80
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601

Winco W10000VE-03/B - 9600 Watt Electric Start Portable Generator (49-State)
Winco W10000VE-03/B - 9600 Watt Electric Start Portable Generator (49-State)
Model: 24010-003
$3,670.80
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

9,600 Rated Watts

Surge Watts

10,500
Starting Watts

Fuel

Gasoline

Engine

Briggs and Stratton Vanguard

  • Winco W10000VE Electric Start Portable Job Site Generator
  • Redesigned and improved for years of reliable service
  • Electric Start w/ Recoil Backup (Battery Not Included)
  • Provides easy starting with or without a battery
  • 570cc V-Twin OHV Briggs & Stratton Vanguard Engine
  • Engineered to deliver the dependability you need
  • Low oil protection helps extend engine life
  • Brushless Alternator w/ 100% Copper Windings
  • Provides clean power with no maintenance required
  • Automatic Voltage Regulator (AVR) +/- 1%
  • Allows you to safely power sensitive electrical products
  • Full Panel GFCI Protection - OSHA & NEC 2011 Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • 7-Gallon Fuel Tank - EPA Approved
  • Provides up to 4.3 hours of run time @ 100% load
  • 30-Amp NEMA L6-30R & 60-Amp NEMA 14-60R Receptacles
  • Makes it easy to power tools and equipment on the job site
  • Premium Square D Circuit Breakers
  • With built-in Visi-Trip indicator for added safety
  • Redesigned 14-Gauge Tubular Steel Cradle
  • Allows for easier servicing of generator components
  • Standard Lifting Eye
  • Makes this generator easy to transport
  • 100% Load Tested
  • All generators are tested before they leave the factory
  • 3-Year Commercial Warranty
  • EPA Approved

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
NEMA 14-60R
24010-003
specs product image PID-79440
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
284 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.3 Inches
Product Width
24.6 Inches
Product Height
2.4 Inches
Additional Model Numbers

W10000VE, 24010-003

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
9600 Watts
Surge Watts
10500 Watts
Fuel Type
Gasoline
Rated Amps
40 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start w/ Recoil
CC
570 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
NEMA 14-60R
1
