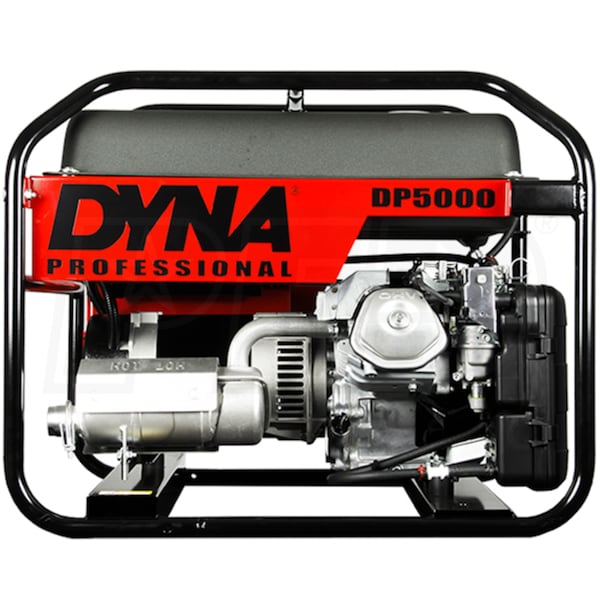

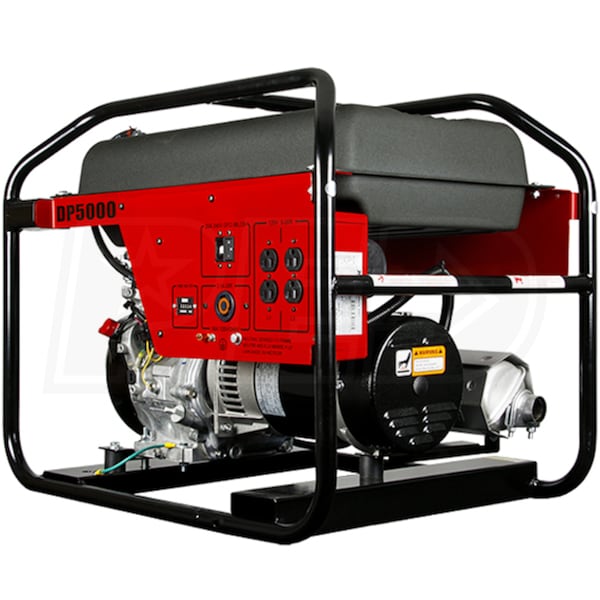

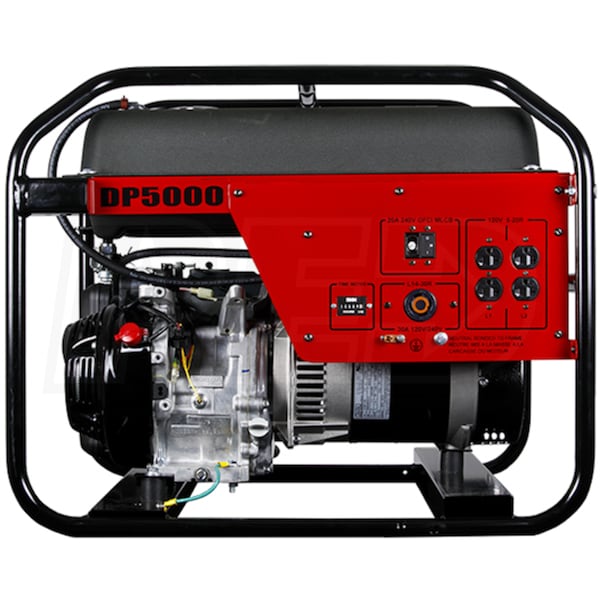

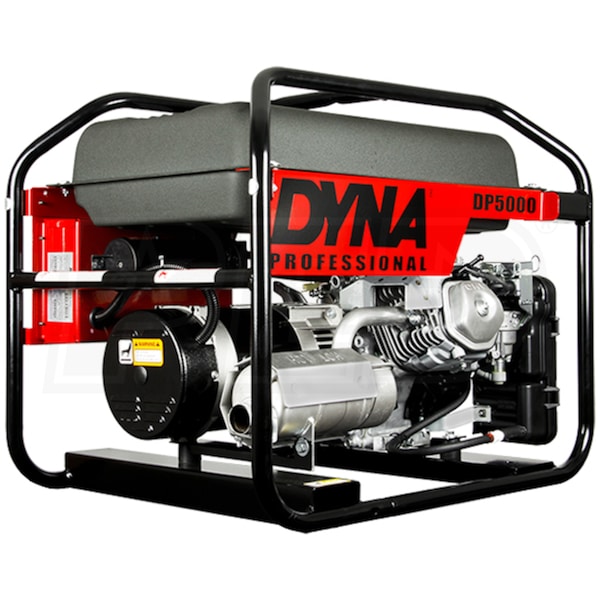

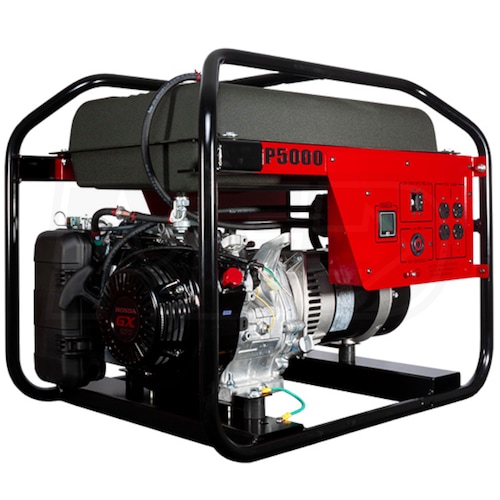

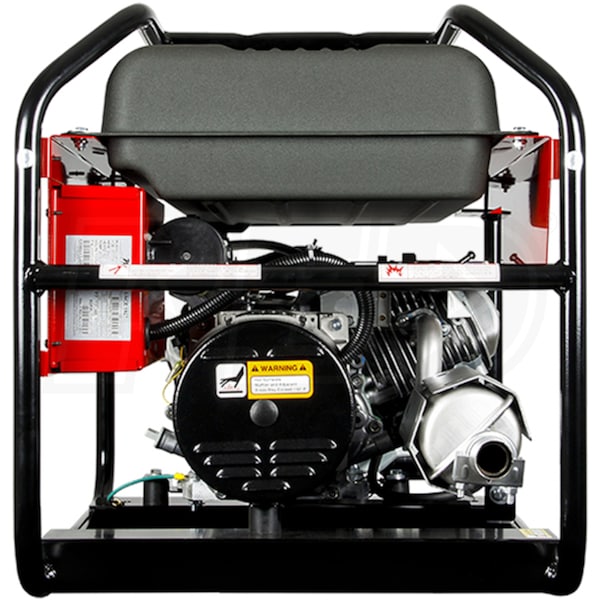

Winco DP5000HR-03/A - Dyna Professional 5000 Watt Portable Generator (49-State)

Model:

29005-006

Write A Review
$2,106.80
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Winco DP5000HR-03/A - Dyna Professional 5000 Watt Portable Generator (49-State)
Winco DP5000HR-03/A - Dyna Professional 5000 Watt Portable Generator (49-State)
Model: 29005-006
$2,106.80
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Optional Accessories 14
$54.99
Factory-Direct
$76.50
In-Stock
$179.99
Factory-Direct
$63.99
Only 5 In-Stock
$7.25
In-Stock
$6.50
In-Stock
$50.49
In-Stock
$44.99
Only 5 In-Stock
$257.60
Factory-Direct
$39.99
Factory-Direct
$96.99
Factory-Direct
$158.99
Factory-Direct

Features

Grade

Professional

Style

Portable

Run Watts

4,560 Rated Watts

Surge Watts

5,000
Starting Watts

Fuel

Gasoline

Engine

Honda GX

  • Winco DP5000 DYNA Professional Series Portable Generator
  • A great addition to any work crew or master craftsman's garage
  • 270cc Honda GX270 OHV 4-Cycle Engine
  • OHV design for increased efficiency and optimal power transfer
  • Automatic mechanical decompression allows for easier starting
  • Low Oil Protection
  • Shuts engine down in the event of a low oil event to prevent engine damage
  • Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
  • Helps prevent damaging voltage spikes that can harm tools and equipment
  • Full Panel GFCI Protection - OSHA Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • 8-Gallon Steel Fuel Tank w/ Fuel Gauge
  • Provides up to 5 hours run time @ 100% load
  • EPA approved design eliminates carbon emissions
  • 30A L14-30R (120/240V) Receptacle
  • Provides the ability to power 30A tools and equipment
  • 20-Amp Main-Line Circuit Breaker
  • Provides superior overload protection
  • Control Panel Mounted Hour Meter
  • Easily monitor run time and track maintenance intervals
  • Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
  • Powder-coat paint protects finish from damage and debris
  • Includes lifting-eye for easier generator placement on the job site
  • 100% Load Tested
  • All generators are tested prior to leaving the factory
  • EPA Compliant
  • 3-Year Engine & 3-Year Generator Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
29005-006
specs product image PID-80142
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
156 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21.5 Inches
Product Height
23.6 Inches
Additional Model Numbers

DP5000, 29005-006

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
4560 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Tank Size
8 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Grade Type
Professional
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
270 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1

Reviews

(1)
Winco 29005-006 Reviews & Ratings
Verified Buyer
Verified Buyer
High Quality Unit
By Philip R.
Avon, New York
Purchased 10/04/2019 |
Review Posted 10/12/2019
I wanted 3 things out of a generator for backup power: A Honda GX270 engine, a gas gauge, and a master circuit breaker/cutoff switch. I only found three candidates and all were about the same price. The only disadvantage to the Winco was the OSHA-mandated full GFCI and bonded neutral but I can deal with that.

This generator has very good build quality with all-metal construction. The dolly kit is robust. The gas tank is heavy gauge and huge. It is typically loud but the muffler damps it down to a loud throbbing. Omitted in the description, the hour meter also displays voltage, load, frequency and engine rpm. It starts easy and easily powers my essential appliances. I won't go into the details of how I circumvented the GFCI for the twistlock receptacle except to say that I had little trouble doing it. Only trouble I experienced was that the engine speed was a bit too high- also easy to fix.
