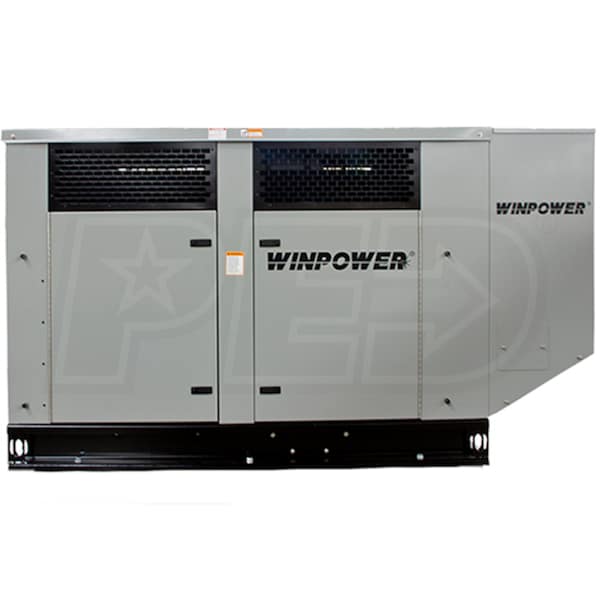

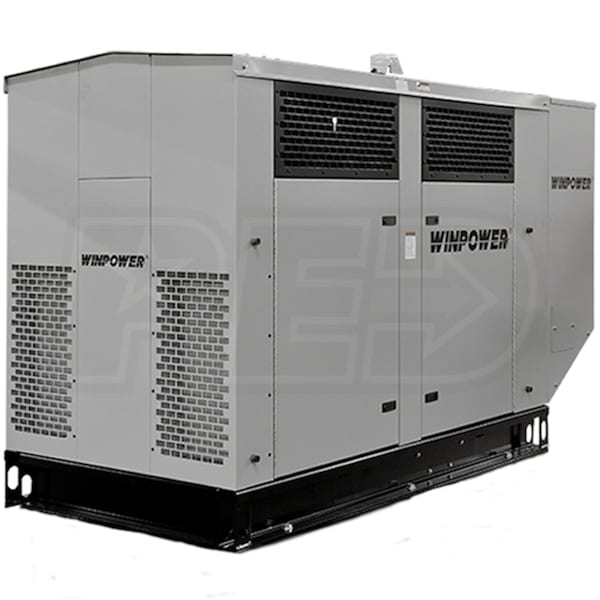

Winco DR65F4 - 62kW Standby & Prime Power Diesel Generator

Model:

DR65F4

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Winco DR65F4 - 62kW Standby & Prime Power Diesel Generator
Winco DR65F4 - 62kW Standby & Prime Power Diesel Generator
Model: DR65F4
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

62,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

FPT Industrial

  • Winco 62kW Liquid-Cooled Diesel Generator
  • For emergency standby and prime power* applications
  • 4.5L FPT Industrial N45 SM2 Liquid-Cooled Diesel Engine (Tier III)
  • 1800 RPM design provides quieter operation and fuel efficiency
  • Stamford Brushless Alternator
  • <5% Total Harmonic Distortion for near utility grade power
  • Deep Sea 7310 MKII Digital Controller
  • Automatic safety shutdowns provide added protection
  • Monitors all aspects of your genset & Event fault log recording
  • 14-Gauge Galvaneal Steel Housing w/ Power Coat Paint
  • Internal baffling and 1" foam help lower sound levels
  • Built-In 120V Block Heater
  • Thermostat-controlled designed helps cold-weather starting
  • Standard 2-Amp Battery Charger
  • Factory-installed, 3-stage design extends battery life
  • 100% Load Tested
  • Winco tests ever generator before it leaves the factory
  • *For Prime Power Derate By 20% - Please See Spec Sheet For Details
  • Requires Sub-Base Fuel Tank (Not Included)
  • 1-Year Generator & 5-Year Engine Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

DR65F4
specs product image PID-81591
Overview
Weight
3425 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
103 Inches
Product Width
41 Inches
Product Height
64 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
62000 Watts
Fuel Type
Diesel
Rated Amps
258 Amps
Diesel Fuel Consumption @ 50% Load
2.38 gallons/hr
Hour Meter
Yes
Battery
Not Included (650 CCA)
Enclosure
Steel
Circuit Breaker Size
250 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
FPT Industrial
Starting System
12v Auto Start
CC
4500 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
