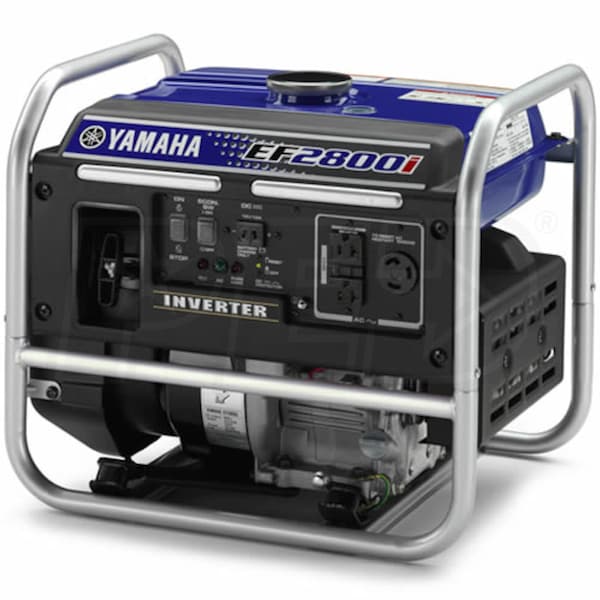

Yamaha EF2800iM - 2500 Watt Portable Inverter Generator (Scratch & Dent)

Model:

EF2800IM-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Yamaha EF2800iM - 2500 Watt Portable Inverter Generator (Scratch & Dent)
Yamaha EF2800iM - 2500 Watt Portable Inverter Generator (Scratch & Dent)
Model: EF2800IM-SD
Was $1,557.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

2,500 Rated Watts

Surge Watts

2,800
Starting Watts

Fuel

Gasoline

Engine

Yamaha



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ***Scratch & Dent*** Minor Cosmetic Damage
  • May have small scuffs/scratches - Will Not Ship In Org. Carton
  • Inverter System w/ Pulse Width Modulation (PWM)
  • Produces higher-quality and cleaner electricity
  • A pure sine wave as clean or cleaner than commercial power
  • 2,800 Max Rated Watts
  • Rated at 2,500 watts for continuous duty
  • "Economy Control" Electrical Governor
  • Adjusts engine speed to electrical need
  • Improves fuel economy and reduces noise
  • Oil Watch Warning System
  • Automatically shuts engine off before oil level is low
  • Prevents engine damage & costly repairs
  • USFS-Approved Spark Arrestor Muffler
  • Quiet operation & keeps sparks from exiting exhaust system
  • AC Non-Fuse Thermal Breaker & Full-Panel GFCI Protection
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • 12-Volt (8.3A) DC Output (Includes Cables)
  • Recharge 12-volt batteries for RV, auto, marine, aircraft, etc.

Specifications

Plug Types
8.3-Amp DC
NEMA 5-20R (GFCI)
NEMA L5-30R
EF2800IM-SD
specs product image PID-13701
Overview
Assembly Required
No
Weight
68 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
19.2 Inches
Product Width
15.6 Inches
Product Height
16.7 Inches
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
2500 Watts
Surge Watts
2800 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Tank Size
2.6 Gallons
Run Time @ 50% Load
12.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60-67 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Neutral Type
Floating
Battery
Not Applicable
Grade Type
Recreational
Engine
Engine Brand
Yamaha
Starting System
Recoil Start
CC
171 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
8.3-Amp DC
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
