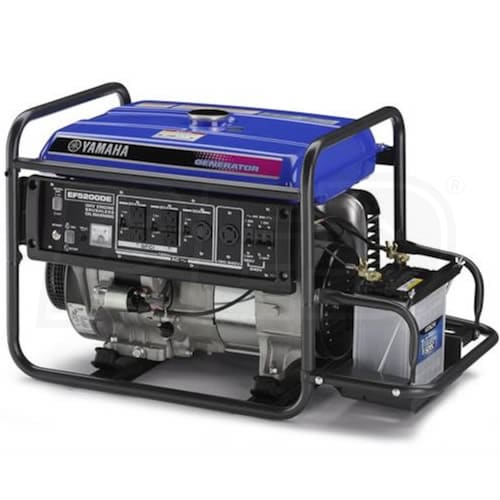

Yamaha EF5200DEM - 4500 Watt Electric Start Portable Generator

Model:

EF5200DEM

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Yamaha EF5200DEM - 4500 Watt Electric Start Portable Generator
Yamaha EF5200DEM - 4500 Watt Electric Start Portable Generator
Model: EF5200DEM
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

4,500 Rated Watts

Surge Watts

5,200
Starting Watts

Fuel

Gasoline

Engine

Yamaha

  • 5,200 Max Rated Watts Portable Generator w/ Electric Start
  • Generator can produce 5,200 watts for up to 20 minutes
  • 4,500 rated watts for continuous operation over 20 minutes
  • 357cc OHV Engine w/ Oil Watch Warning System
  • Prevents engine damage & minimizes down time
  • Unique Combustion Chamber Design & Cast Iron Cylinder Lining
  • Improves power output and reduces exhaust emissions
  • Provides consistent performance & extends engine life
  • Transistor Controlled Ignition (TCI) w/ Auto-Choke System
  • Fast & easy starting, reliable operation even in cold weather
  • Economy Idle
  • Provides improved fuel efficiency and quieter operation
  • Full Power 120/240 Dual-Voltage Design
  • Allows you to run multiple appliances that require 120/240V
  • GFCI - Ground Fault Circuit Interruption
  • Provides added safety around the home or job site
  • AC Non-Fuse Thermal Circuit Breaker
  • Provides added durability and peace of mind
  • 50 State Legal
  • Oil Not Included

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
EF5200DEM
specs product image PID-7068
Overview
Assembly Required
Yes
Weight
205 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
35.2 Inches
Product Width
20.5 Inches
Product Height
22.7 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
4500 Watts
Surge Watts
5200 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Portability Kit
Sold Separately
Tank Size
6.1 Gallons
Run Time @ 50% Load
7.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Yamaha
Starting System
12-Volt Button Start w/ Recoil
CC
357 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
