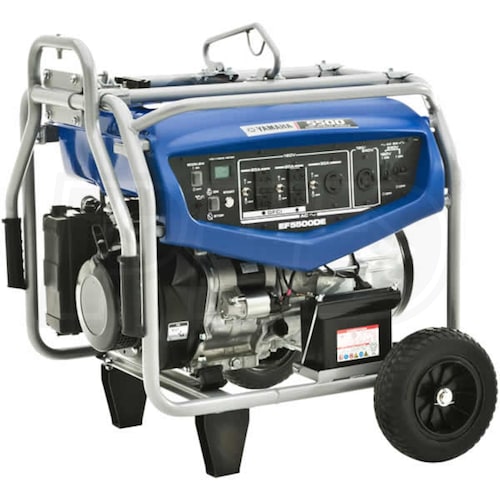

Yamaha EF5500DE - 4500 Watt Electric Start Professional Portable Generator

Model:

EF5500DE

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Yamaha EF5500DE - 4500 Watt Electric Start Professional Portable Generator
Yamaha EF5500DE - 4500 Watt Electric Start Professional Portable Generator
Model: EF5500DE
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

4,500 Rated Watts

Surge Watts

5,500
Starting Watts

Fuel

Gasoline

Engine

Yamaha

  • New For 2014 - Yamaha EF5500D Portable Generator
  • Economical, full featured w/o sacrificing quality or performance
  • 358cc Yamaha OHV Engine w/ Electric Start & Oil Watch Warning
  • Improved efficiency, increased reliability and quieter operation
  • 6.9-Galloin Fuel Tank w/ Economy Idle
  • Allows for up to 9 hours of runtime @ Full Load
  • Provides improved fuel efficiency and quieter operation
  • Full Power 120/240 Dual-Voltage Design
  • Allows you to run multiple appliances that require 120/240V
  • Digital Hour Meter & Digital Volt Meter
  • Easily monitor maintenance/fueling intervals & voltage output
  • Rugged Design w/ Wheel Kit & Fold-Down/Locking Handle
  • Provides full roll-cage protection & makes it easy to move around
  • Fuel Gauge
  • Easily monitor remaining fuel in tank
  • Lifting Eye
  • Provides added security & transportation on the job site
  • Also Includes
  • Battery & Tool Kit
  • 3-Year Residential & Industrial Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
EF5500DE
specs product image PID-13948
Overview
Weight
234 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
29.1 Inches
Product Width
38.4 Inches
Product Height
31.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
4500 Watts
Surge Watts
5500 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.9 Gallons
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74.1 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Yamaha
Starting System
12-Volt Button Start w/ Recoil
CC
358 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
