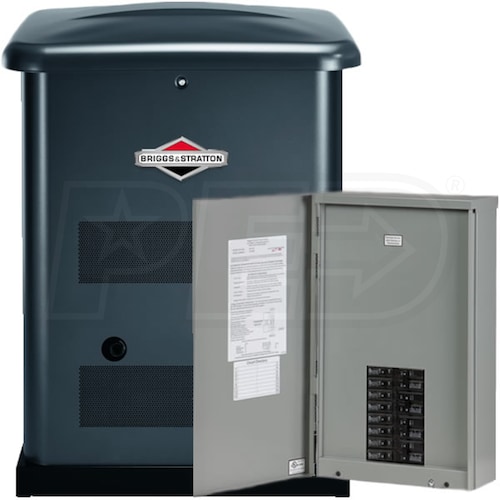

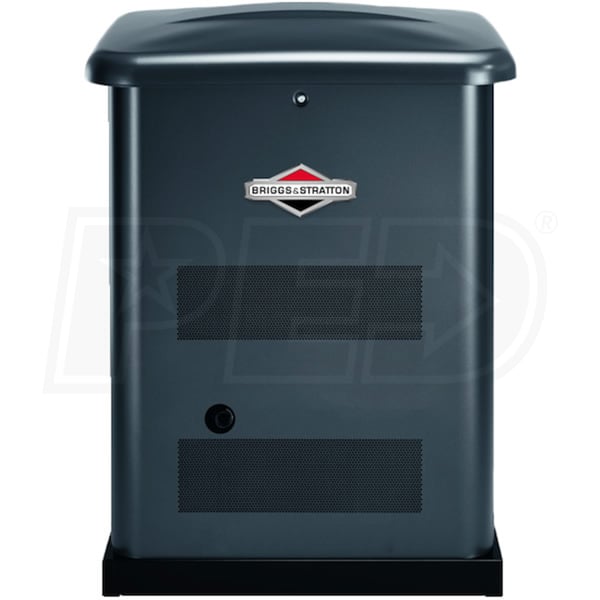

Briggs & Stratton 12kW Standby Generator System (Steel) (100A 16-Circuit + AC Shedding)

Model:

40532

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton 12kW Standby Generator System (Steel) (100A 16-Circuit + AC Shedding)
Briggs & Stratton 12kW Standby Generator System (Steel) (100A 16-Circuit + AC Shedding)
Model: 40532
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

12,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton Vanguard

  • Briggs & Stratton's New 12kW Home Standby Generator System
  • Automatically powers your home in seconds after sensing an outage
  • Streamlined, Space-Saving Design In A Quieter Package
  • Enclosure is 50% smaller and limits sound pressure to 69 dB(A)
  • 100-Amp Automatic Transfer Switch w/ 16-Ckt Load Center (071212)
  • Select up to 16-priority circuits; Rated at 100-Amps @ 240-Volts
  • NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
  • ACCM-II Power Control Module Transfer Switch (2 x 4-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits

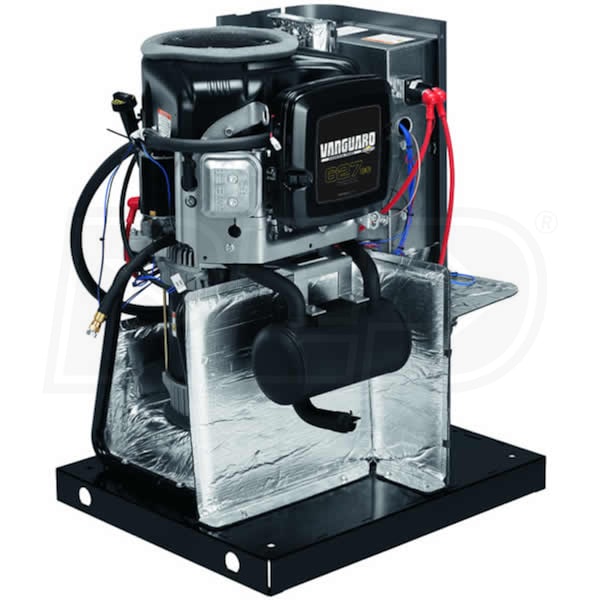

  • 627cc Briggs & Stratton Commercial-Grade Vanguard™ Engine
  • Premium sintered iron cylinder sleeves for improved heat transfer
  • Full lubrication w/ spin-on oil filter cleans oil & protects engine components
  • Brushless Alternator (Less Than 5% THD)
  • Provides clean, safe power that won't harm computers or electronics
  • Automotive-Grade Galvaneal Steel Enclosure To Resist Rust
  • Adv. powder coat paint process for protection from the elements
  • Exclusive Front Exhaust Design For Flexible Placement
  • Can be placed as close as 18" from structure* (Verify Local Building Codes)
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

40532
specs product image PID-61912
Overview
Assembly Required
Yes
Weight
318 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
25 Inches
Product Width
28 Inches
Product Height
37.2 Inches
UPC
011675405328
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
10000 Watts
LP Power Capacity
12000 Watts
NG Fuel Consumption @ 50% Load
117 ft³/hr
NG Fuel Consumption @ 100% Load
172 ft³/hr
LP Fuel Consumption @ 50% Load
1.7 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
50 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 4-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
627 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
