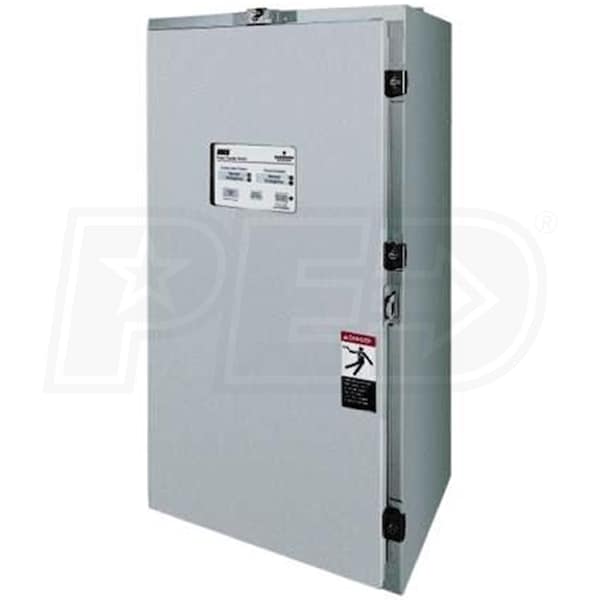

Briggs & Stratton By ASCO Series 285 - 100-Amp Automatic Transfer Switch (120/240V 3-Phase)
Model:
071099
+
Share This Product
Features
Type
Standard
Amp Rating
100
Load Mgmt.
Not Compatible
Voltage
120/240 Three-Phase
Enclosure
NEMA 3R
- 100-Amp 285 Series By ASCO Automatic Transfer Switch (120/240V 3-Phase)
- Compatible with Briggs & Stratton 3-phase generators
- NEMA 3R Outdoor Rated Enclosure
- Approved for indoor or outdoor installations
- Standard Installation
- Requires a sub-panel for overload protection

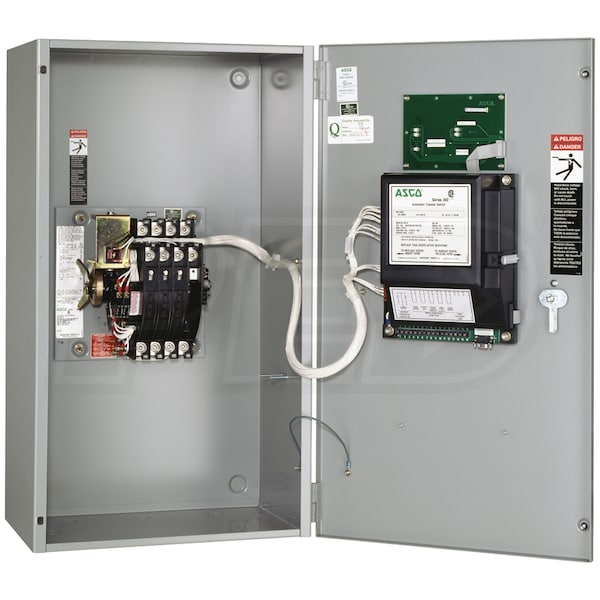

- True Double-Throw Contacts w/ Inherent Mechanical Interlocking
- Prevents connection of generator and utility source for maximum safety
- Terminals For Connection of Neutral and Ground Conductors
- Allows for easier installation

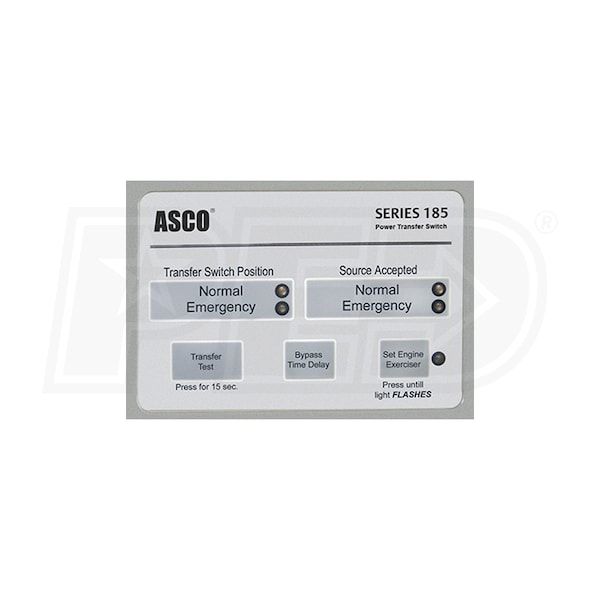

- Convenient Control Interface w/ Symbols & Visual Indicators
- Makes it easy to see transfer switch and power source status
- Built-In Auxiliary Contacts For Switch Position Indication
- Provides immediate indication when the switch positions changes
- Additional Features:
- Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
- Listed to UL 1008 for optional standby systems
- Please See Spec Sheet For Additional Compliance & Safety Standards
- 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
071099

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Consumer Warranty
3 Years
UPC
011675710996
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
