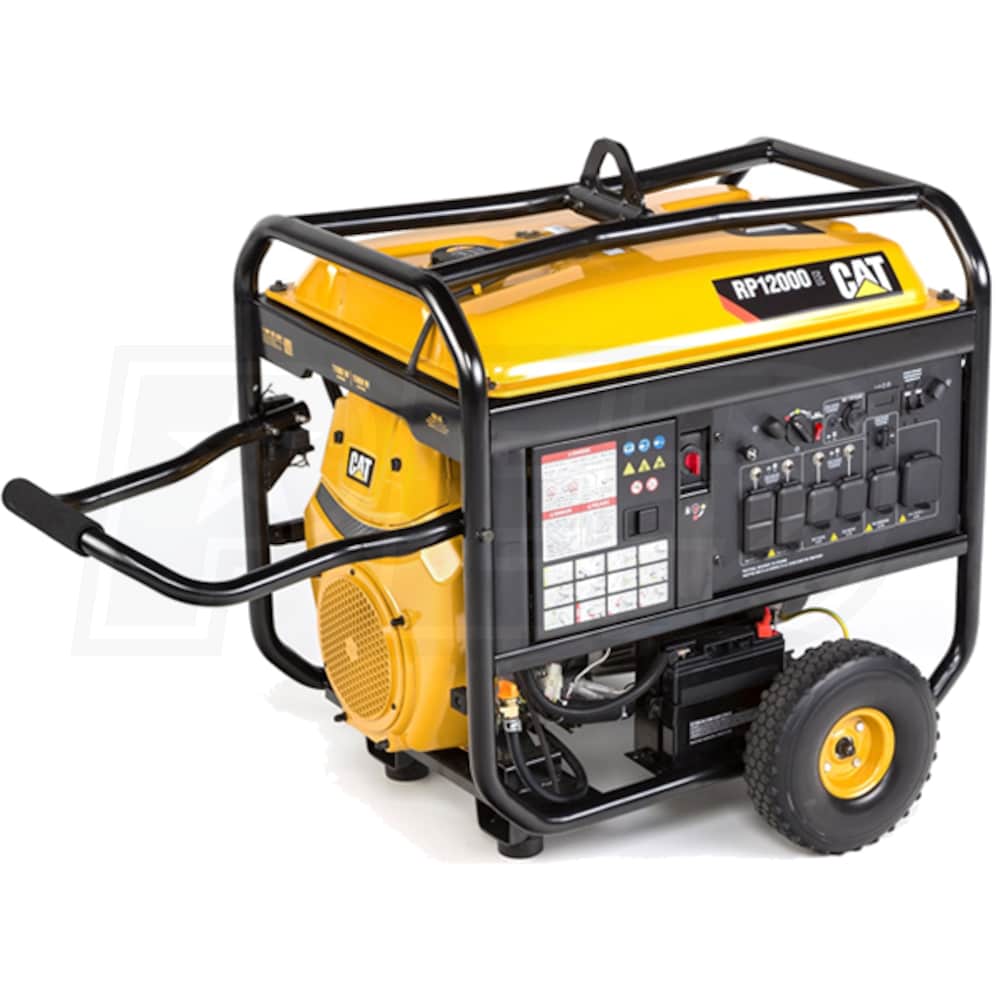

CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (CARB)

Model:

502-3700

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (CARB)
CAT® RP12000 E - 12,000 Watt Electric Start Portable Generator (CARB)
Model: 502-3700
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

12,000 Rated Watts

Surge Watts

15,000
Starting Watts

Fuel

Gasoline

Engine

Caterpillar

  • Cat® RP 1200 E Semi-Pro Portable Generator (CARB)
  • Ideal for emergency home back-up, DIY enthusiasts and contractors
  • Electric Start (Battery Included)
  • Allows for easy starting with the push of a button
  • Includes Smart battery charger
  • 670cc Caterpillar V-Twin OHV Engine
  • Suitable for powering more equipment and heavier loads
  • Fully-Pressurized Oil System
  • Provides added protection during operation
  • Extra-Large, 13.5-Gallon Metal Fuel Tank w/ Fuel Gauge
  • Allows for run-times over 11-hours @ 50% load
  • All-Copper Windings - Less Than 5% THD
  • Provides clean power suitable for sensitive electronics and tools
  • Low-Idle Mode
  • Optimizes fuel consumption and noise levels for less engine wear
  • 120/240V (L14-50R) 50-Amp & (14-30R) 30-Amp Twistlock Outlets
  • Allows this generator to provide power to larger tools and manual transfer switches
  • (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
  • Helps prevent electrical shock, especially during wet conditions
  • Lighted Control Panel
  • Provides easy, one-sided operation
  • Removable Comfort Handle & Wheel Kit
  • 11" Solid steel wheels w/ solid rubber tires for easy transportation
  • Removable Lifting Eye
  • Makes this generator easy to move on the job site
  • Premium Muffler & USDA Approved Spark Arrestor
  • Helps reduce noise levels and provide safer operation in dry conditions
  • Includes Tool Kit & Engine Oil
  • Provides everything you need to get up and running, in the box
  • 3-Year Limited Warranty (Must Register within 30 Days)
  • Standard 2-Year Limited Warranty if not registered within 30 days
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
502-3700
specs product image PID-80296
Overview
Weight
353 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
35.7 Inches
Product Width
32.7 Inches
Product Height
35.8 Inches
UPC
815683023884
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
15000 Watts
Fuel Type
Gasoline
Rated Amps
50 Amps
Portability Kit
Never Flat Wheels
Tank Size
13.2 Gallons
Run Time @ 50% Load
11.7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Semi-Pro
Engine
Engine Brand
Caterpillar
Starting System
12-Volt Button Start
CC
670 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
