Champion 73536i Inverter Package with Parallel Cable Kit (CARB)

Model:

EGD-CHAMPION2000KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Champion 73536i Inverter Package with Parallel Cable Kit (CARB)
Champion 73536i Inverter Package with Parallel Cable Kit (CARB)
Model: EGD-CHAMPION2000KIT
Was $1,192.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

1,700 Rated Watts

Surge Watts

2,000
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • This Product is a Kit and contains the following items
  • 2 x Champion 73536i - 1700 Watt Inverter Generator w/ Parallel Capability (73536I)

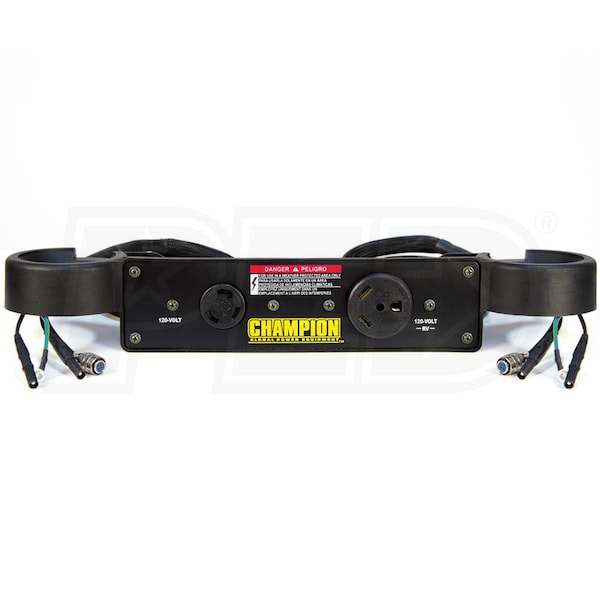

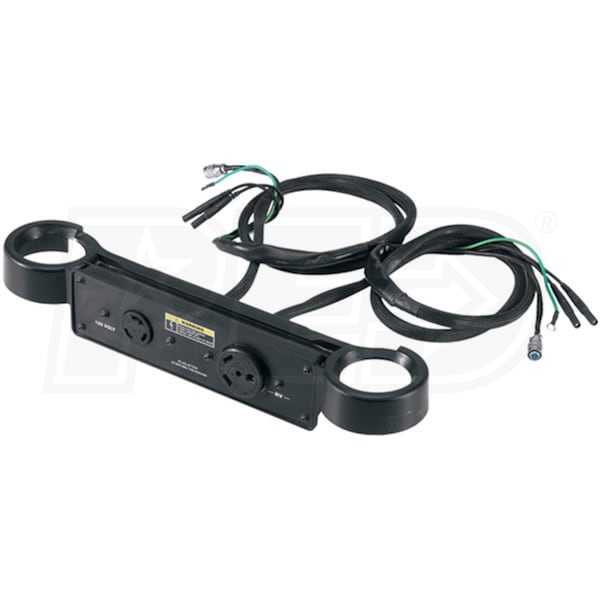

  • 1 x Champion 73500I - Parallel Cable Kit For Champion 73536i Inverter Generators (73500I)
  • True Sine Wave Inverter Technology
  • Clean, quiet power for campsites, RV's, cabins & tailgating
  • Combined Power - One Outlet
  • Provides a maximum power of 3000w
  • Powered By Champion 80cc OHV Engines w/ Low Oil Sensor
  • Provides added protection to extend engine life
  • Economy Mode Switch - 9.5 Hours of Run Time @ 1/4 Load
  • Adjusts engine speed to the optimum level depending on load
  • Quiet - Only 53 dBA at 7M (USDA-Approved Spark Arrestor/Muffler)
  • Fully enclosed durable housing reduces sound output
  • 30-Amp 120V Twistlock Receptacle (L5-30R)
  • Easily power a manual transfer switch for emergency use
  • 30-Amp RV Receptacle (TT-30R)
  • Great for RV applications when shore power is unavalaible

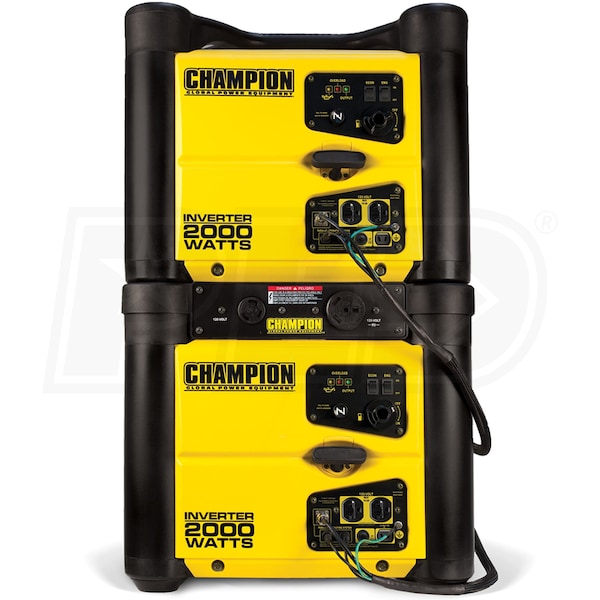

  • Space-Saving, Stackable Design
  • Parallel panel mounts inbetween the generators
  • Plug & Play
  • Easy to connect, no tools required
  • Lightweight Design w/ Built-In Carrying Handle
  • Makes these inverters easy to move where you need it most
  • 12V DC Outlet & DC Charging Cable
  • Great for charging auto & motorsport batteries
  • Engine Oil NOT Included
  • 3-Year Limited Warranty
  • CARB & EPA Compliant
  • Product Includes
    • (2) Champion 73536i - 1700 Watt Inverter Generator w/ Parallel Capability (CARB) (73536I)
    • (1) Champion 73500I - Parallel Cable Kit For Champion 73536i Inverter Generators (73500I)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
8.3-Amp DC
8.3-Amp DC
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L5-30R
RV Ready 30-Amp
Product Includes
  • (2) Champion 73536i - 1700 Watt Inverter Generator w/ Parallel Capability (CARB) (73536I)
  • (1) Champion 73500I - Parallel Cable Kit For Champion 73536i Inverter Generators (73500I)
EGD-CHAMPION2000KIT
specs product image PID-67905
Overview
Weight
49 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
19.3 Inches
Product Width
13.2 Inches
Product Height
16.3 Inches
UPC
896682735367
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1700 Watts
Combined Kit Watts
3000 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
14 Amps
Tank Size
1 Gallon
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 dbA
Idle Control
Yes
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CC
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
8.3-Amp DC
2
NEMA 5-20R - Wall-Type
2
NEMA L5-30R
1
RV Ready 30-Amp
1
Overview
Weight
49 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
19.3 Inches
Product Width
13.2 Inches
Product Height
16.3 Inches
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1700 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
14 Amps
Tank Size
1 Gallon
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 dbA
Idle Control
Yes
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
Overview
Weight
3 Pounds
Consumer Warranty
1 Year
Product Length
19.8 Inches
Product Width
7.9 Inches
Product Height
3.5 Inches
Product Specs
Frequency
60 Hertz
Rated Watts
3600 Watts
Rated Amps
30 Amps
Maximum Wattage
3600 Watts
Plugs
NEMA L5-30R
1
RV Ready 30-Amp
1

Reviews

(4)
Champion EGD-CHAMPION2000KIT Reviews & Ratings
