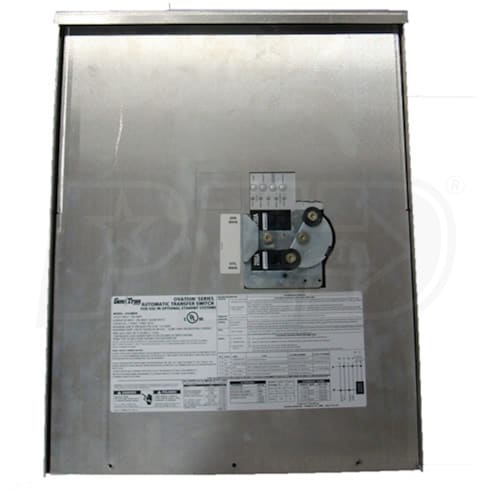

Gen-Tran 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)

Model:

ATS2002R

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Gen-Tran 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Gen-Tran 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Model: ATS2002R
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

200

Load Mgmt.

Sold Separately

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Generator Ready
  • Makes a home ready for a home standby generator
  • Designed For Outdoor Installation
  • NEMA 3R Aluminum cabinet can be surface mounted & padlocked
  • Ovation Series 200-Amp Automatic Transfer Switch
  • Microprocessor-controlled and open transition
  • Circuit breaker-based switching with manual override
  • Programmable exerciser intervals
  • Designed For Simple Installation
  • Installs outside next to the utility meter
  • Feeds a standard load center indoors
  • Accommodates up to 4 additional circuits or subfeeds
  • Accomodates PowerPause™ Load Management Modules
  • Up to 3 modules can be added (Sold Separately)
  • Manage up to 6 circuits to help avoid generator overload
  • Ability to run larger appliances when gen capacity is available
  • ATSRK Relay For Signaling Between Generator & ATS
  • Required for connection with most stationary generators
  • UL Listed

Specifications

ATS2002R
specs product image PID-5664
Overview
Weight
23 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
23.5 Inches
Product Width
18.5 Inches
Product Height
4.25 Inches
UPC
764260220027
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
50000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Sold Separately
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
50000 Watts
