Generac PowerPact™ 7.5kW Home Standby Generator System (50-Amp 8-Circuit ATS)
Model:
6998
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
7,500 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac
- 7.5kW (LPG) / 6kW (NG) PowerPact Air-Cooled Standby Generator
- The most affordable standby generator system on the market
- 50-Amp Automatic Transfer Switch w/ Integrated Load Center
- NEMA 1 Indoor rated, lightweight enclosure (Whip Not Included)
- 8-Circuit Essential Circuit Load Center
- For large main service & only partial generator backup
- Allows you to backup 120V & 240V circuits
- 3-Year Limited Warranty
- Plus 24/7-365 Customer Support
- Have your questions answered when it's convenient for you

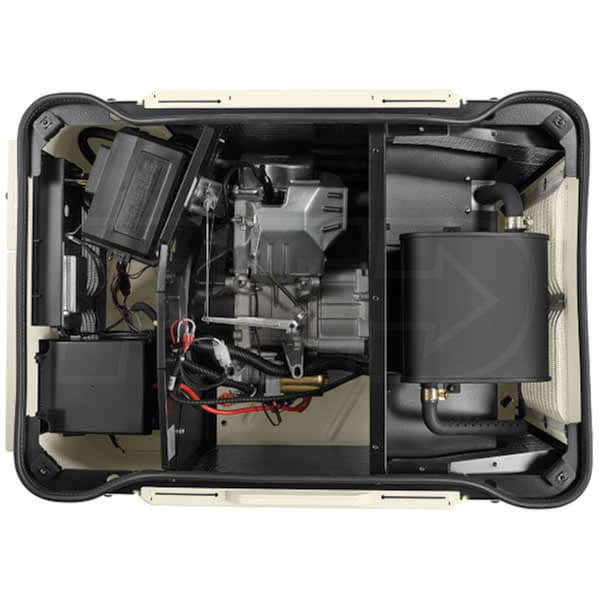

- 420cc Generac OHV Air-Cooled Engine
- Cast iron cylinder walls provides durability & long engine life
- Revolving Field Alternator Design w/ Automatic Voltage Regulation
- Operates 25% more efficiently than a revolving armature generator
- Prevents damaging voltage spikes
- Digital Generator Controller
- LED lights provides system info without having to open the gen enclosure
- Manual/Auto/Off Switch & Seven Day Exerciser
- Main Line Circuit Breaker & Timed Trickle Battery Charger

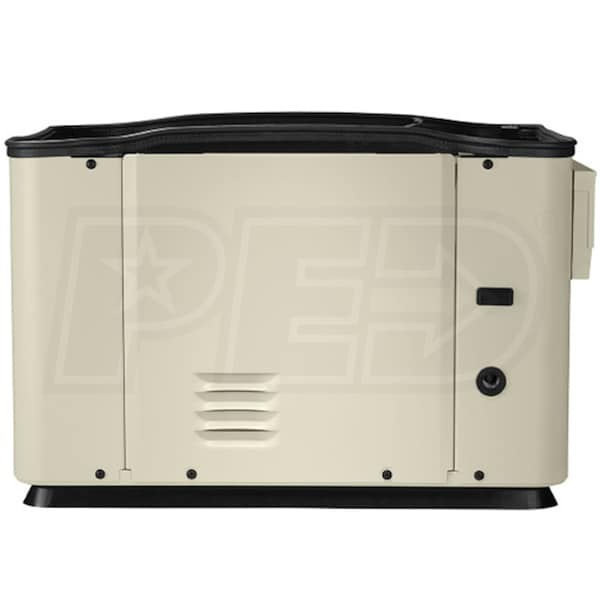

- Galvaneal Steel Enclosure & Composite Mounting Pad
- Will not rust & is ideal for harsh and coastal installations
- Enclosed Critical Grade Muffler
- Provides quiet operation and provides added safety
- Also Includes:
- Flexible Fuel Line Connector
- Requires Group U1, 12V (300 CCA) Battery - Not Included
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
6998
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
360 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
Standby Generator
Product Length
36 Inches
Product Width
27 Inches
Product Height
25 Inches
UPC
696471074390
Additional Model Numbers
69981, 6998
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
7500 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
6000 Watts
LP Power Capacity
7500 Watts
NG Fuel Consumption @ 50% Load
73 ft³/hr
NG Fuel Consumption @ 100% Load
117 ft³/hr
LP Fuel Consumption @ 50% Load
0.87 gallons/hr
LP Fuel Consumption @ 100% Load
1.42 gallons/hr
Rated Amps
31.25 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
50-Amps
Battery
Not Included
Enclosure
Steel
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
No
Engine
Engine Brand
Generac
Starting System
12v Auto Start
CC
420 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
