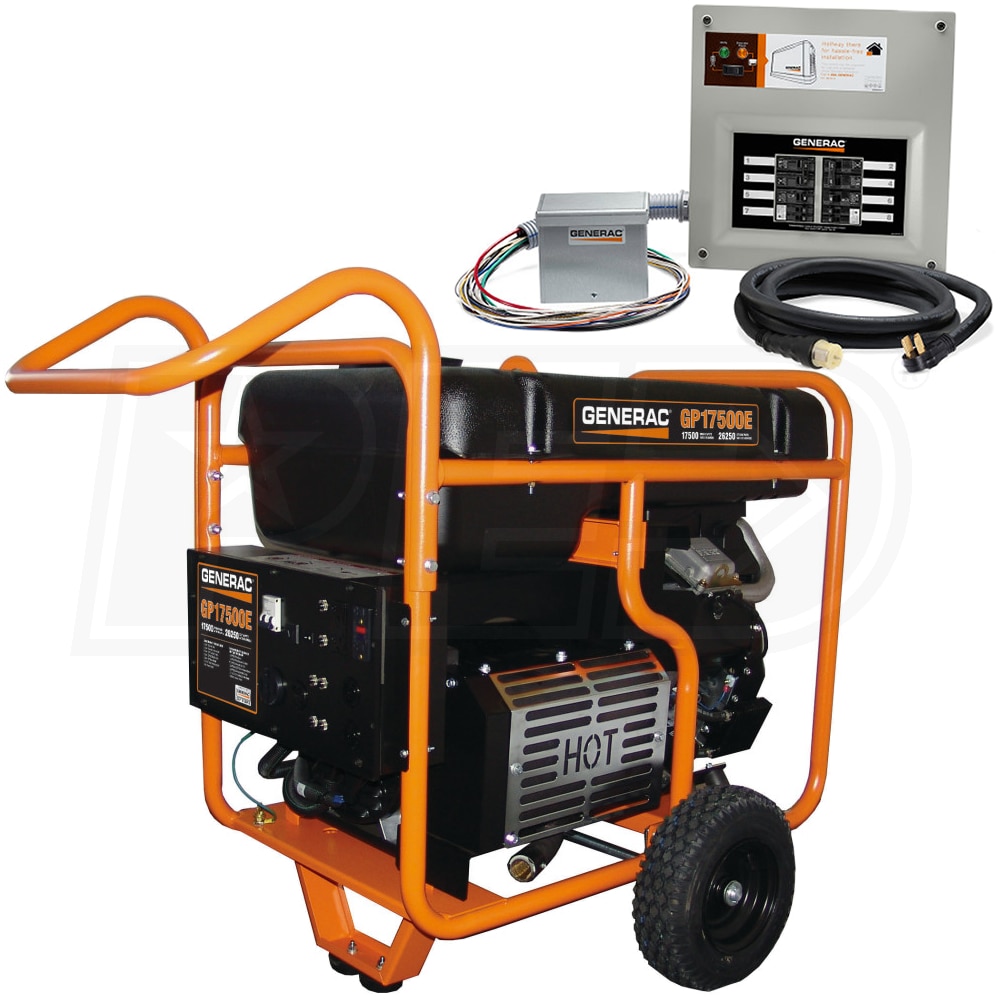

Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) w/ 50-Amp Power Transfer Kit

Model:

EGD-5735KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) w/ 50-Amp Power Transfer Kit
Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) w/ 50-Amp Power Transfer Kit
Model: EGD-5735KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

17,500 Rated Watts

Surge Watts

26,250
Starting Watts

Fuel

Gasoline

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Emergency Power Bundle (Generator & Power Transfer Kit)
  • Provide emergency power to your panel when you need it most
  • 17,500 Watt Electric Start Portable Generator (Battery Included)
  • Starts with a simple press of a button
  • 992cc Generac OHVI Engine - Designed Specifically For Generators
  • Provides longer life and longer maintenance intervals
  • Automatic Idle Control
  • Reduces noise, increase fuel efficiency and extends life
  • 16-Gallon Gas Tank
  • Generates up to 10 hours of electricity @ 1/2 load
  • Pre-Wired 50-Amp Manual Transfer Kit For 10-16 Circuits (9855)
  • Interchangeable breakers make it easy to reconfigure or expand
  • Power Transfer Kit Includes:
  • 50-Amp HomeLink™ Upgradeable Manual Transfer Switch
  • 50-Amp Power Inlet Box (Must Be Hardwired)
  • 10' 50-Amp (L14-50/CS6364) Power Cord
  • Wiring Harness & Connectors, Conduit and Fittings
  • Installation Manual
  • Please Note Requires 50-Amp 2-pole Main Breaker in Load Center
  • 2 Year Warranty (Generator) & 5 Year Warranty (Transfer Switch)
  • Product Includes
    • (1) Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) (5735)
    • (1) Generac 9855 - 50-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.) (9855)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

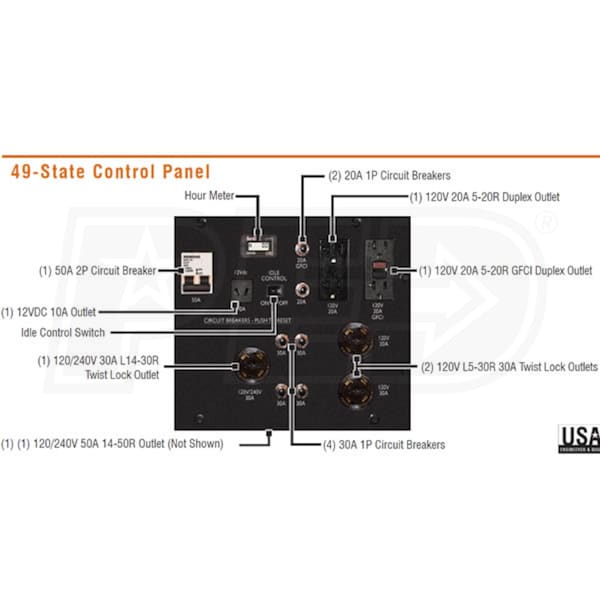

Plug Types
12-Amp DC
NEMA 5-20R (Wall-Type)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Product Includes
  • (1) Generac GP17500E - 17,500 Watt Electric Start Portable Generator (49-State) (5735)
  • (1) Generac 9855 - 50-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.) (9855)
EGD-5735KIT
specs product image PID-9223
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
400 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
31 Inches
Product Height
39.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17500 Watts
Surge Watts
26250 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Transfer Switch
Manual (Included)
Transfer Switch Amperage
50-Amps
Neutral Type
Bonded
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Transfer Switch Circuits
20A 120V
4
20A 240V
1
30A 240V
1
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
GP17500E
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
400 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
31 Inches
Product Height
39.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
17500 Watts
Surge Watts
26250 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Emergency
Low THD
No
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
33 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
20A 120V
4
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Plug Type
14-50R
