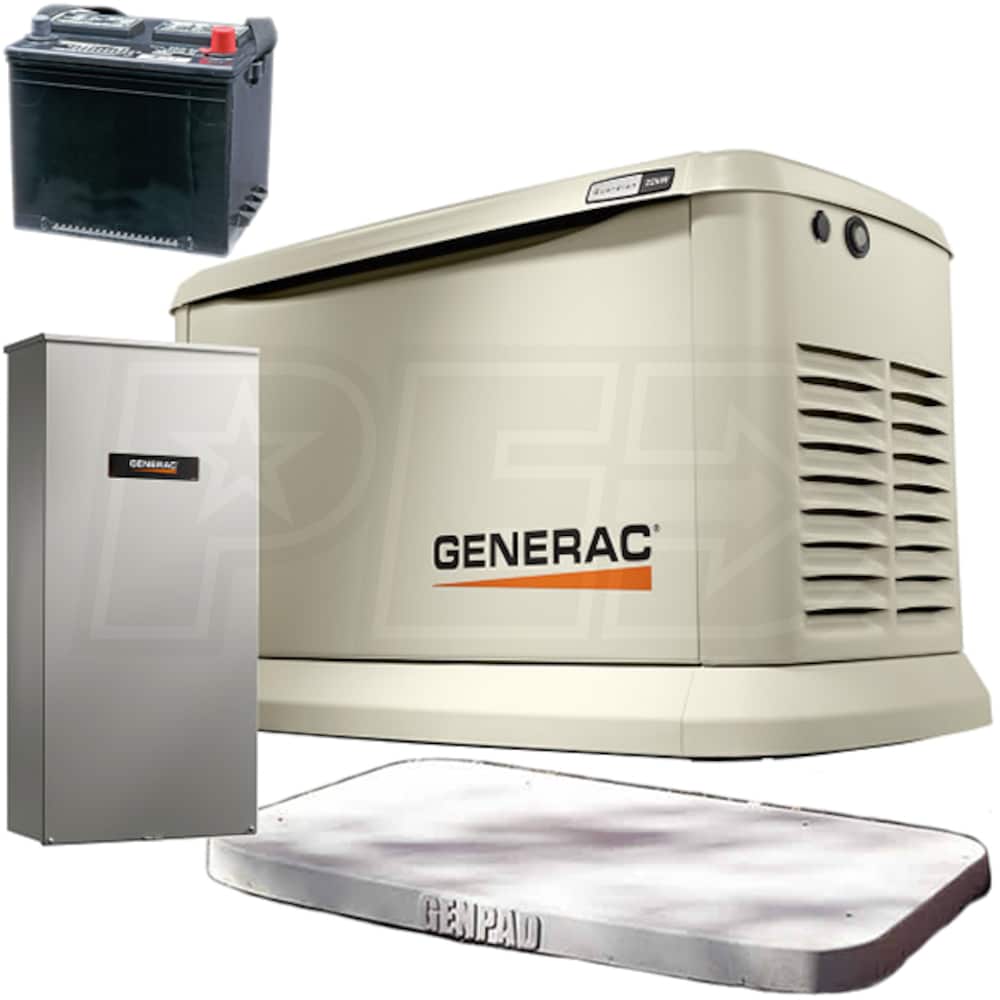

Generac Guardian™ 22kW Standby Generator System (200A Service Disc. + AC Shedding) + 3" GenPad™ + Battery
Model:
EGD-7043KIT
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
- ***Save $$$ When Purchasing This Generator Kit***
- Generator sold at full price
- Provides a lower cost alternative to purchasing items separately
- 22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator
- Protects your home and family during a power outage
- Digital Power Management (DPM) protects against overload
- Includes 200-Amp Service Entrance Rated Automatic Smart Switch
- Installs between main meter & service panel for faster & less costly installation
- DPM technology allows for the Smart Control of (4) A/C units only
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- 5-Year Limited Warranty
- Plus 24/7•365 Customer Support so you have your questions answered when its convenient for you
- Generac's G-Force Engine
- Specifically desgined for the demanding enviroment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connectes to your existing LP or natural gas fuel supply
- True Power™ Electrical Technology & Automatic Digital Voltage Regulation (+/- 1%)
- Less than 5% Total Harmonic Distorsion (THD) for utility grade power
- Allows for faster response time & maximum motor starting ability
- Evolution™ Digital Controller
- Multilingual, 2-Line LCD display for simple, straighforward operation
- Programmable-exerciser lets you set how often & what time generator will self-test
- Tough, Durable All-Aluminum Sound Attenuated Enclosure
- RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
- Compatible With Mobile Link™ Remote Monitoring (Sold Separately)
- Easily montior generator status anywhere with a smartphone, tablet, or PC
- Installation Flexibility*
- Can be installed within 18" of a building; *Always check local bulding codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Additonal Features:
- Base fascia kit, 12" Flexible fuel line and Direct-To-Dirt composite mounting pad
- Built-in Battery Charger
- (1) Generac Guardian™ 22kW Standby Generator System (200A Service Disconnect + AC Shedding) (7043)

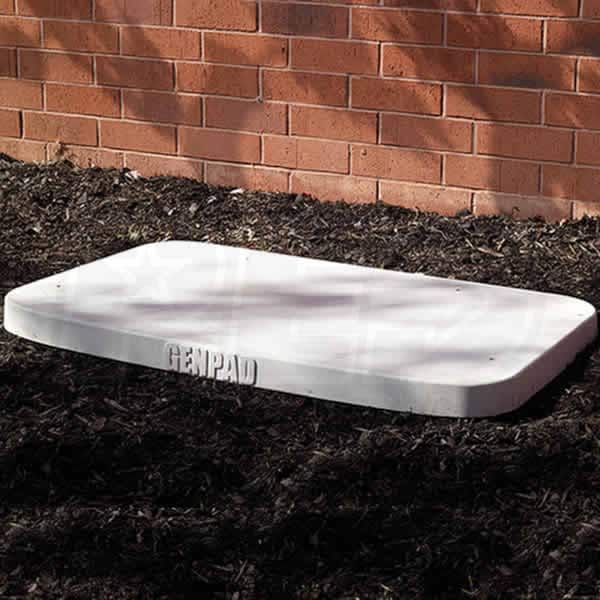

- (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)
- (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
Product Includes
Specifications
Product Includes
- (1) Generac Guardian™ 22kW Standby Generator System (200A Service Disconnect + AC Shedding) (7043)
- (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)
- (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-7043KIT

Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Surge Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
7043
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48.5 Inches
Product Width
25.5 Inches
Product Height
28.6 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Surge Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
216 ft³/hr
NG Fuel Consumption @ 100% Load
310 ft³/hr
LP Fuel Consumption @ 50% Load
2.56 gallons/hr
LP Fuel Consumption @ 100% Load
3.87 gallons/hr
Rated Amps
91.6 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
10000007852
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
5819
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
