Generac Guardian® 10kW Aluminum Standby Generator System (100A Service Disconnect + AC Shedding) w/ Wi-Fi + 3" GenPad + Battery

Model:

EGD-7171-RXSW100A3-KIT

Write A Review
$4,371.99
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Dec 4th
Shipping to60601
synchrony card logo
$243 / Month
With our 18 months 0.00% APR*
18 fixed monthly payments required.
Generac Guardian® 10kW Aluminum Standby Generator System (100A Service Disconnect + AC Shedding) w/ Wi-Fi + 3
Generac Guardian® 10kW Aluminum Standby Generator System (100A Service Disconnect + AC Shedding) w/ Wi-Fi + 3" GenPad + Battery
Model: EGD-7171-RXSW100A3-KIT
$4,371.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

10,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    *Please Note - Some product images display optional fascia base trim kit*
  • 10k® Guardian Air-Cooled Standby Generator Kit
  • Protects your home and family during a power outage
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • Includes 100-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel
  • Allows for faster and less costly installation
  • Standard Smart A/C Management Module
  • Allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Generac Load Managers (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • New 460cc Generac G-Force Engine
  • Specifically designed for the demanding standby environment
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • TRUE POWER™ Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser helps prevent oil seal drying and damage
  • QUIET-TEST™ Self-Test Mode
  • Runs at a lower RPM for a five or twelve minute test
  • Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
  • Corrosion resistant design for all weather conditions
  • Installation Flexibility*
  • Can be installed within 18" of a building
  • *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Also Includes
  • Smart battery charger & 14" Flexible fuel line connector

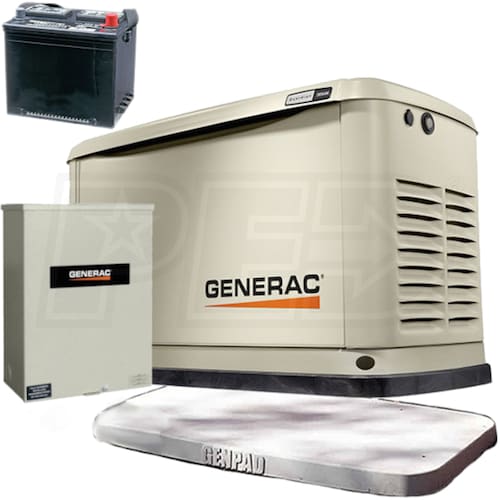

  • Product Includes
    • (1) Generac Guardian® 10kW Aluminum Home Standby Generator w/ Wi-Fi (7171)
    • (1) Generac 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RXSW100A3)
    • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)

Specifications

Product Includes
  • (1) Generac Guardian® 10kW Aluminum Home Standby Generator w/ Wi-Fi (7171)
  • (1) Generac 100-Amp Automatic Smart Transfer Switch w/ Power Management (Service Disconnect) (RXSW100A3)
  • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-7171-RXSW100A3-KIT
specs product image PID-147150
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
335 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
101 ft³/hr
NG Fuel Consumption @ 100% Load
127 ft³/hr
LP Fuel Consumption @ 50% Load
.97 gallons/hr
LP Fuel Consumption @ 100% Load
1.48 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Battery
Included
Enclosure
Aluminum
Circuit Breaker Size
45 Amps
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
460 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
338 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
101 ft³/hr
NG Fuel Consumption @ 100% Load
127 ft³/hr
LP Fuel Consumption @ 50% Load
.97 gallons/hr
LP Fuel Consumption @ 100% Load
1.48 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
45 Amps
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
460 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
RXSW100A3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
22.5 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
20 Inches
Product Width
14.6 Inches
Product Height
7 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
10000007852
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz

Reviews

Generac Guardian EGD-7171-RXSW100A3-KIT Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Jared, the Generator Expert

How-To Articles

How to Pick the Perfect Home Standby Generator
How to Pick the Perfect Home Standby Generator
With increasing power outages, pandemic shutdowns, and social unrest sweeping t...
How to Find An In-Stock Generator During a Blackout
How to Find An In-Stock Generator During a Blackout
Finding an electric generator can be a challenge at times, especially during a ...
How to Size a Home Standby Generator
How to Size a Home Standby Generator
Put down the calculator! Sizing an essential circuit standby generator is extre...
Electric Generators How-To Library
Electric Generators How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Generac Guardian® 10kW Aluminum Standby Generator System (100A Service Disconnect + AC Shedding) w/ Wi-Fi + 3" GenPad + Battery
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Generac Guardian EGD-7171-RXSW100A3-KIT
Customer Review Images
