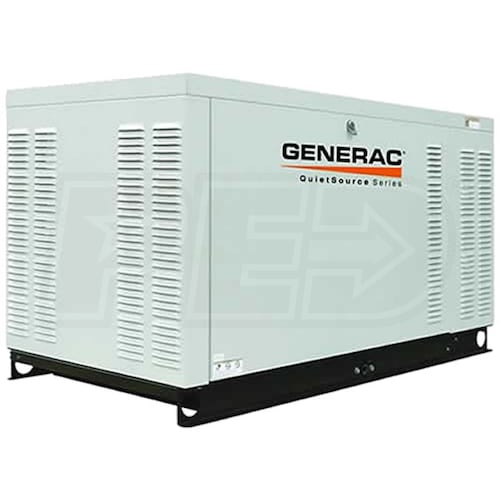

Generac QuietSource Series™ 22 kW Standby Power Generator (Premium-Grade) (CA Model)
Model:
QT02224ANAX-CA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
22,000 Rated Watts
Surge Watts
22,000
Starting Watts
Fuel
LP/Natural Gas
Engine
Generac 2.4L 4-Cylinder
- Premium-Grade Standby Generator
- High-quality, liquid-cooled standby generator
- Designed for luxury homes and commercial buildings
- Whisper-Test
- Low-speed exercise mode for quieter weekly tests
- Exercises at a quiet 61 decibels at 23 feet
- Sound level comparable to an idling car
- Automotive-Style Engine
- Powerful Generac in-line 4-cylinder automotive engine
- Operates at half the speed of other engines (1800 vs. 3600 RPM)
- Runs at a quiet 70 decibels at 23 feet under load
- Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Sound attenuated acoustically designed enclosure
- Tri-Lingual Digital Nexus™ Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automatic Shutdown
- High coolant temp, low coolant, low oil pressure and overspeed
- Transfer Switch (Sold Separately)
- Fork Lift or Loading Dock is Required for Delivery.
Specifications
QT02224ANAX-CA
Overview
Weight
843 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
62.2 Inches
Product Width
29 Inches
Product Height
33.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Surge Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
190 ft³/hr
NG Fuel Consumption @ 100% Load
316 ft³/hr
LP Fuel Consumption @ 50% Load
2 gallons/hr
LP Fuel Consumption @ 100% Load
3.4 gallons/hr
Rated Amps
92 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
