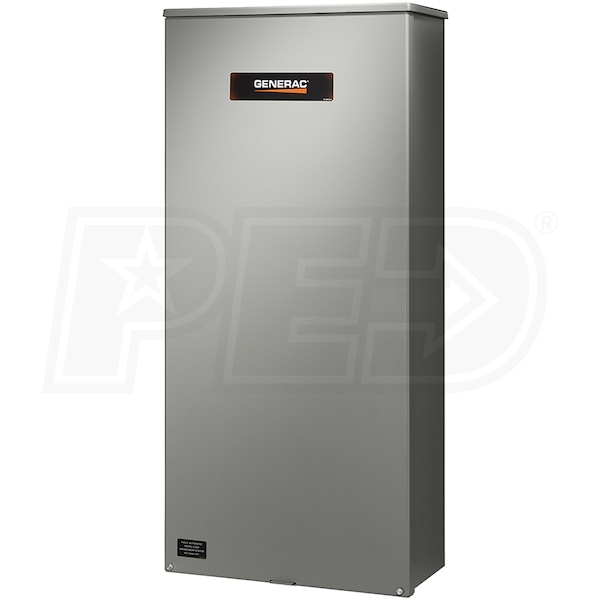

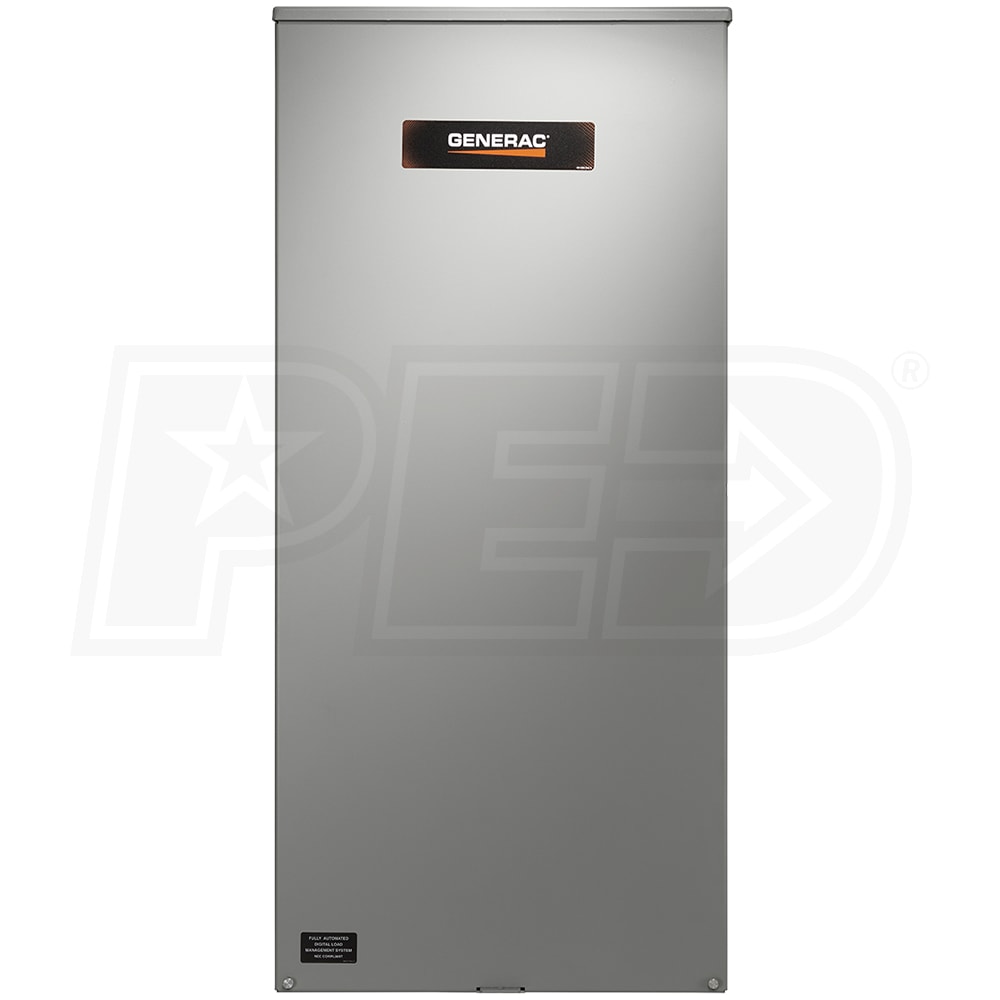

Generac 200-Amp Automatic Smart Transfer Switch & 20-Circuit Load Center w/ Power Management (Service Disc.)
Model:
RXGW20SHA3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
8
Model: 0K06950SRV
$30.49
In-Stock
Model: 7006
$291.99
In-Stock
Model: 7000
$152.99
In-Stock
$120.99
In-Stock
Model: 5703
$26.99
In-Stock
Model: 0J5141
$109.99
In-Stock
$26.99
Factory-Direct
$319.99
In-Stock
Features
Type
Service Disconnect
Amp Rating
200
Circuits
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
- Compatible with Evolution™ or Nexus™ generator controllers
- Improved Design
- 35% Smaller footprint & greater branch circuit capacity
- Integrated 20-Circuit Load Center (Breakers Not Included)
- 40-Circuit capacity with the use of tandem breakers
- For use with Siemens, Murray, Square D and Eaton 1" breakers
- Accepts GFCI, AFCI and tandem breakers
- Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder
- Be Smart....Get More Out Of Your Generator
- Cycles power on and off as needed for different appliances
- Manage Up To (4) Individual HVAC Loads - No Hardware Req.
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Up To (8) Generac Load Managers (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- Service Entrance Rated (Load Side & Line Side Disc. Breakers)
- Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder coating paint (Gray)
- Tech Spec Summary: Only For Use w/ Generac Generators
- Load Transition Type: Open Transition
- Withstand Rating: 22,000 Amps --- Lug Range: 2/0 - #14
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXGW20SHA3
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
45 Pounds
Certification
ETL
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
38.5 Inches
Product Width
17 Inches
Product Height
8 Inches
UPC
696471076219
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Max Circuits
20
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Reviews
(6)
Generac RXGW20SHA3 Reviews & Ratings
Customer Photos and Videos
I Would Recommend And Again I Wouldn't?
By Timothy D
New York
Purchased 03/25/2024 |
Review Posted 05/07/2024
Not enough room to work with anything bigger than 4 /0. Neutral lug connections are not sized properly. Needed to alter ground bars and neutral. If you need this panel because you need power supply outside then I would recommend. But it needs to have ample room for entry and better neutral lug connections.
Was this review helpful?
Rating Breakdown
1/5
2/5
5/5
2/5
Pros:
Easy To Use
Better Quality
By Godwin S
Florida
Purchased 01/10/2024 |
Review Posted 03/14/2024
This panel is built with better quality control than the regular ATS and has ample space to accommodate different wiring methods.
Godwin S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Pros:
Easy To Use, I'd Buy It Again
Cons:
None
1st 26kw
By Mo
North Carolina
Purchased 09/26/2023 |
Review Posted 11/14/2023
1st 26 kw generator and 1st 20 circuit MB transfer switch and all went well. Power off in the morning, power company turned back on that evening. Nice smooth job.
Mo Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Durable, Exceeded Expectations, Quiet
Cons:
Heavy, Expensive
Our Second Generac
By Gregg H
Maryland
Review Posted 10/28/2022
Have an older Generac model for our residence. Bought a second this year for a second property we own. Has great updated features and is much quieter. Next year we may think about updating the one on our main house.
Gregg H Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again
Cons:
All generators over priced in current market bu good value still on this one
The Cadillac Of Transfer Switches
By Jason V.
Spring Hill, Florida
Purchased 07/23/2021 |
Review Posted 08/23/2021

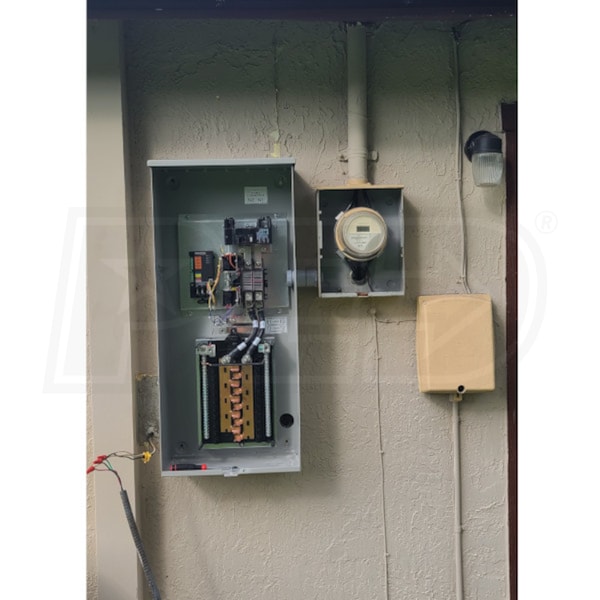

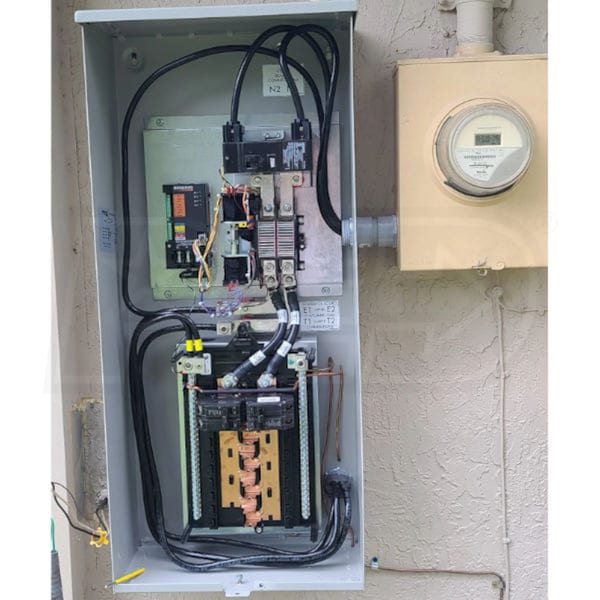

200 amp main service disconnect with automatic transfer switch and built in main panel. The chassis is well constructed and the internal components are rigidly mounted. The unit is quite large and heavy so make sure you have a good mounting point. You'll need to have the correct size hole saw for your conduit terminations as this unit has no preformed knockouts. Having a main panel on the exterior of the home is really nice for people with property to run power to well pumps, garages and outbuildings without having to enter the home in conduit. Internal control electronics in the unit are there ready to connect the smart load shedding/control modules if you need them based on your connected load size and generator capacity.
Jason V. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
5/5
4/5
5/5
4/5
Pros:
Features, High Quality, Id Buy It Again, Completely custom conduit access points.
Cons:
Heavy, Expensive, The interior panel mounting design is surprisingly bad. It flops
Easy To Hook Up But Not Happy
By Steve S.
Walnut Creek, California
Purchased 10/07/2020 |
Review Posted 03/12/2021
I think I waited for months for this product it wasn’t inspected properly I had problems with it I had to send out one of your Generac dealers to fix it I wasn’t compensated and the generator that came with it was missing parts I guess you could fill out the review survey for yourself
Steve S. Does Not Recommend This
Was this review helpful?
Expert Response
Thank you for providing feedback about your purchase. We will bring this order to the attention of our Generac rep.
Jared G.
Generator Expert
Manufacturer Response
Thank you for the review, we appreciate your feedback. We recommend contacting our customer support team at 888-436-3722 as they will be better able to assist you.
Rating Breakdown
1/5
2/5
1/5
2/5
Pros:
Easy To Use
Cons:
Heavy, Durability, Expensive
