Gillette SP-4000 - 400kW (NG) / 300kW (LPG) Automatic Standby Generator (120/240V 3-Phase)

Model:

SP-4000-3-3

Write A Review
Gillette SP-4000 - 400kW (NG) / 300kW (LPG) Automatic Standby Generator (120/240V 3-Phase)
Gillette SP-4000 - 400kW (NG) / 300kW (LPG) Automatic Standby Generator (120/240V 3-Phase)
Model: SP-4000-3-3
Call 1 (800) 800-3317 for pricing and order information.
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 8-12 Weeks
Share

Features

Grade

Professional

Style

Standby (Liquid Cooled)

Run Watts

400,000 Rated Watts

Voltage

120/240 Three-Phase

Fuel

LP/Natural Gas

Engine

PSI

    ^Please Note - Requires Loading Dock or Forklift For Delivery^
  • Gillette SP-4000 Emergency Standby Generator
  • For commercial applications with 120/240V 3-Phase service
  • Please contact us for additional voltage options
  • 400 kW (NG) or 300 kW (LPG) Standby Rating
  • Rungs on cleaning burning Natural Gas or Liquid Propane (LPG)
  • 21.9L Power Solutions (PSI) 12-Cylinder Liquid Cooled Engine
  • Provides long life, high performance, and great fuel efficiency
  • Electronic governor for precise isochronous frequency regulation
  • Stamford Brushless Alternator (UL Certified)
  • Circuit-breaker protection, wired to gen-set
  • Self-ventilated and drip proof construction
  • Automatic Voltage Regulation (+/- 1/2 %)
  • Solid state, frequency compensated design
  • Under-speed and Over-excitation protection
  • Deep Sea 7420 Generator Controller
  • Digital microprocessor w/ logic for programming in the field
  • Backlit LCD display for engine/generator status and warnings
  • Stop / Manual / Auto Modes and automatic engine shutdowns

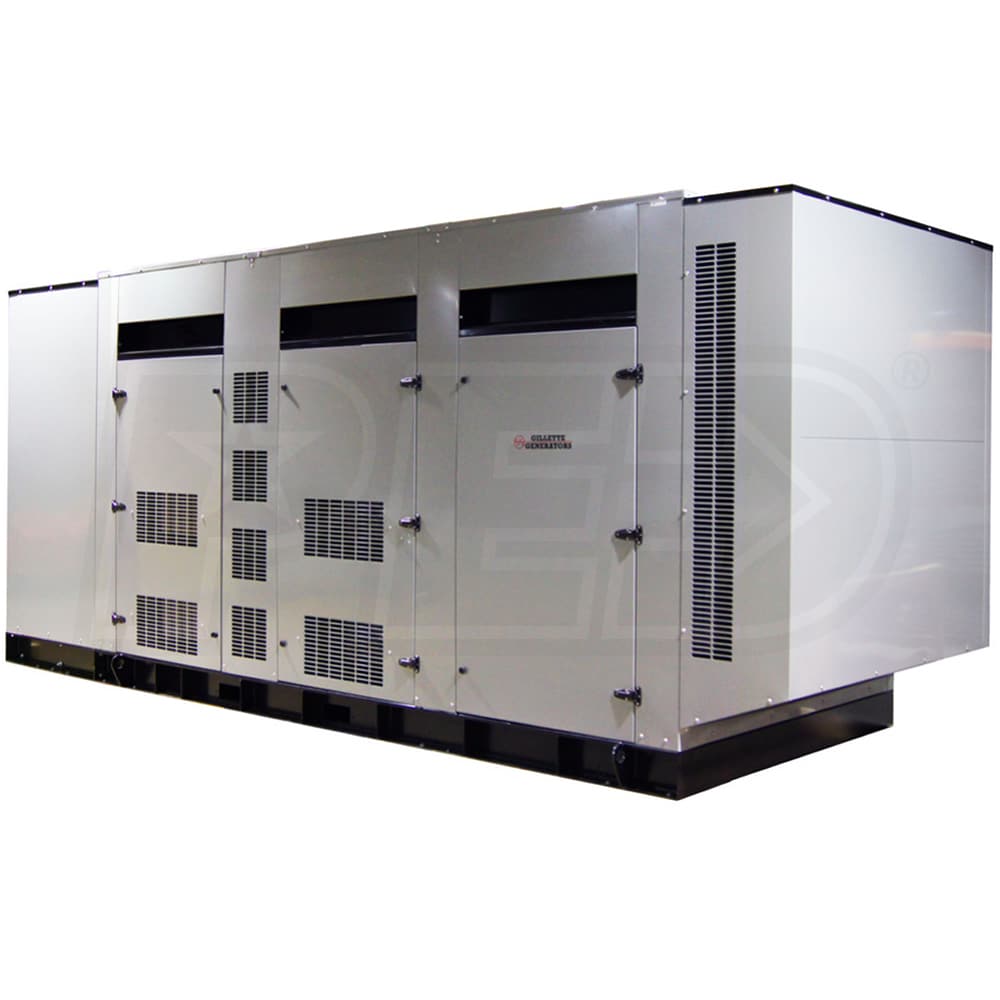

  • Level 2 - Weather / Soundproof Aluminum Housing
  • Enamel Powder Coat for corrosion resistance
  • 18/8 Stainless Steel hardware for maximum enclosure life
  • Includes Critical Grade Muffler
  • Operates at only 80 dB @ 23'
  • 2-Stage Battery Charger w/ Float (Battery Not Included)
  • Also includes battery tray, cables and hold down straps
  • PLEASE NOTE - Requires Automatic Transfer Switch (Sold Separately)
  • 12 Month / 2000 Hour (Engine) & 24 Month / 1000 Hour (Generator) Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

SP-4000-3-3
specs product image PID-97138
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
12050 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
210 Inches
Product Width
82 Inches
Product Height
1000 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
400000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
400000 Watts
LP Power Capacity
300000 Watts
NG Fuel Consumption @ 50% Load
2314 ft³/hr
NG Fuel Consumption @ 100% Load
4230 ft³/hr
LP Fuel Consumption @ 50% Load
22.22 gallons/hr
LP Fuel Consumption @ 100% Load
38.70 gallons/hr
Rated Amps
1200 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
81
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Professional
Engine
Engine Brand
PSI
Starting System
12v Auto Start
CC
21900 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
