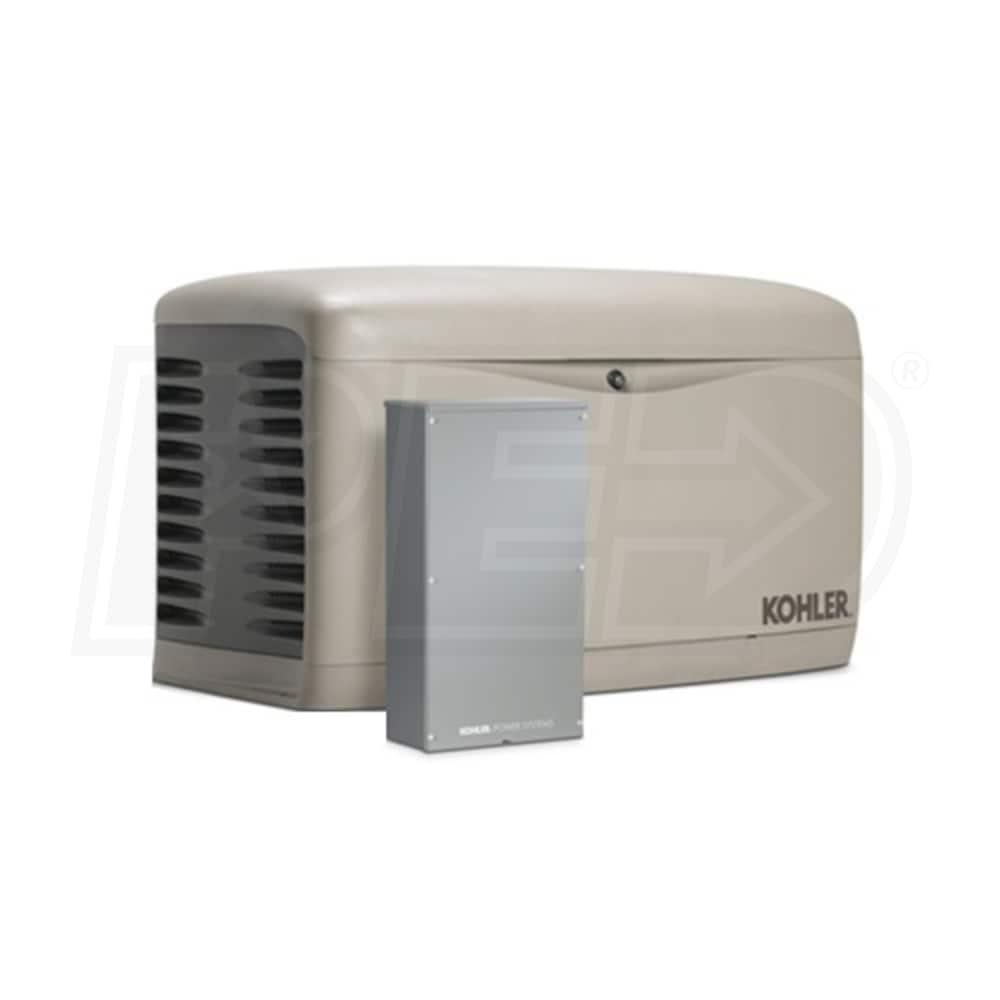

Kohler 20RESL - 20kW Home Standby Generator System (200-Amp Outdoor ATS)

Model:

20RESL

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler 20RESL - 20kW Home Standby Generator System (200-Amp Outdoor ATS)
Kohler 20RESL - 20kW Home Standby Generator System (200-Amp Outdoor ATS)
Model: 20RESL
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Kohler Command PRO® OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Cleaner Power for Sensitive Electronics
  • Protects sophisticated electronics with low distortion (THD)
  • Fast Response
  • Kohler™ generators restore power in as little as 10 seconds
  • Quiet Operation
  • Maintains neighborhood solitude - approx 73 dB(A) at 7 m (23 ft)
  • ADC-RES Advanced Digital Control
  • Digital voltage regulation & engine speed governing
  • LED display shows system status and setup information
  • Easy Installation - Polymer Base - No Need For Concrete Pad
  • Simple field conversion between natural gas and LP
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments
  • Kohler Model RRT 200-Amp Outdoor Automatic Transfer Switch
  • Connects to Emergency Sub-Panel (ATS not Service Entrance Rated)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

20RESL
specs product image PID-6809
Overview
Weight
500 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
HP
30 HP
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
