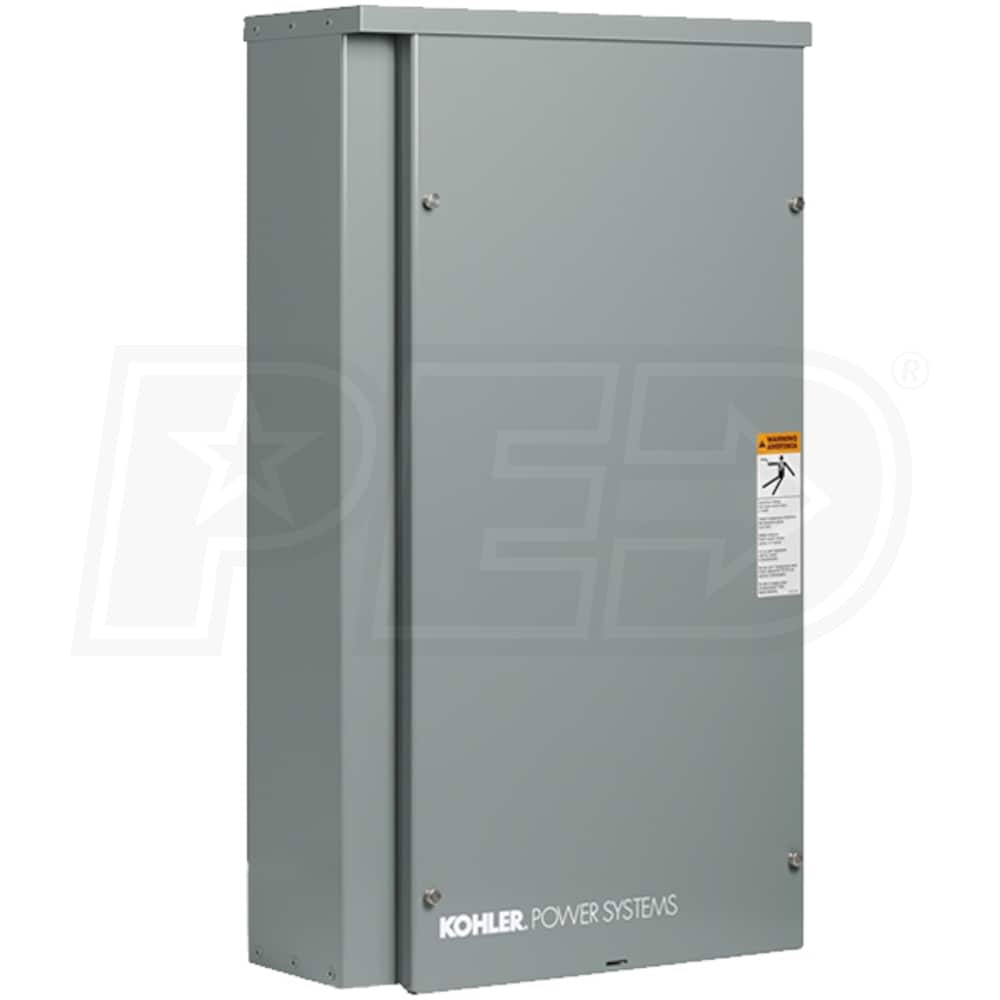

Kohler RXT Series 300-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Model:
RXT-JFNC-300ASEQS4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Service Disconnect
Amp Rating
300
Load Mgmt.
Built-In
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- Kohler RXT Series 300-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2 / DC2 controllers
- Service Entrance Rated
- Includes disconnect circuit breakers on both sources
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads***
- Added Safety
- Contractor manually operable for maintenance purposes
- Rated at 300-Amps @ 240-Volts
- ***Requires PRM (Sold Separately)
- 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RXT-JFNC-300ASEQS4
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531172433
Additional Model Numbers
RXT-JFNC-300ASE, RXT-JFNC-300ASEQS4
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
300 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
300 Amps
Max Generator Input
300 Amps
Maximum Wattage
72000 Watts
UL Listed
Yes
