Kubota GL11000 - 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Lockable Security Door & Oil Drain Valve

Model:

GL11000-MOD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kubota GL11000 - 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Lockable Security Door & Oil Drain Valve
Kubota GL11000 - 11,000 Watt Lowboy II Series Industrial Diesel Generator w/ Lockable Security Door & Oil Drain Valve
Model: GL11000-MOD
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

11,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Kubota

  • Kubota Low Boy II Industrial Diesel Generator
  • Quieter, more compact & cleaner (EPA Tier II) than original Low Boy
  • 719cc Kubota D722 Liquid-Cooled Diesel Engine
  • Large capacity oil pan provides oil change intervals up to 200 hours
  • Dual-element air filter design for heavy-duty apps in dusty conditions
  • Keyed Electric Start (Battery Included)
  • Starter safety relay prevent starter from engaging after start-up
  • Compact Design & Easy Maintenance
  • Engine crankshaft is direct coupled with cooling fan for minimum power loss
  • Simple maintenance of oil, fuel, battery & cooling water on one side
  • Large Capacity 7.4 Gallon Diesel Fuel Tank
  • Provides up to 7 hours @ 100% load on a single fill-up
  • Monitor Gauges & Automatic Safety Shutdowns
  • Easily see when there's water temperature & oil pressure issues
  • Double Circuit Breaker Protection (Generator & Receptacle)
  • Shuts the engine down to prevent overcurrent damage
  • Less Noise During Operation (68 dB(A) @ 23')
  • Slower-speed fan, built-in muffler & reduced air intake sound
  • Plus Forklift pockets, One-Point Lifting Eye & ATS Terminal
  • Also Includes

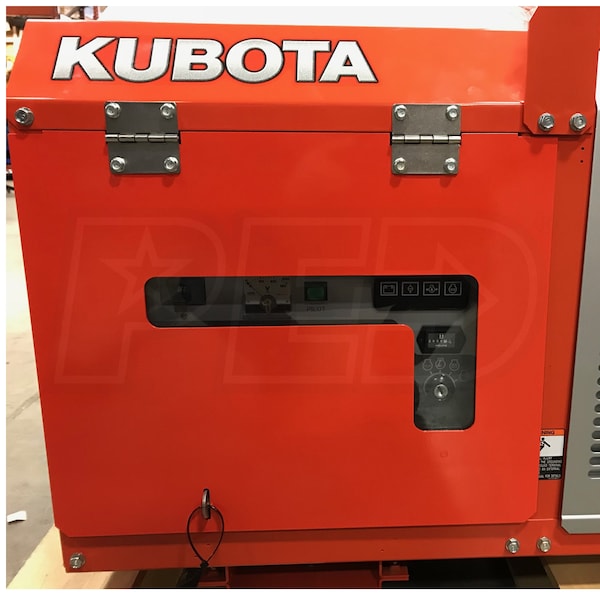

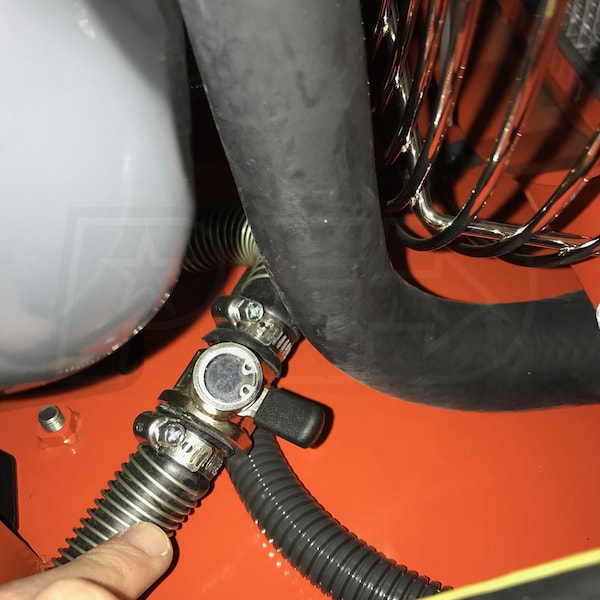

  • Lockable Security Door & Oil Drain Valve
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L6-30R
GL11000-MOD
specs product image PID-81600
Overview
Weight
650 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Style
Portable Generator
Product Length
50.4 Inches
Product Width
24.3 Inches
Product Height
27.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
11000 Watts
Fuel Type
Diesel
Rated Amps
46 Amps
Diesel Fuel Consumption @ 50% Load
1 gallons/hr
Tank Size
7.4 Gallons
Run Time @ 50% Load
10.4 Hours
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Transfer Switch
Automatic (Not Included)
Battery
Included
Grade Type
Professional
Prime Power
Yes
Engine
Engine Brand
Kubota
Starting System
12-Volt Key Start
CC
719 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L6-30R
1
CS6364/5 - 50-Amp Twistlock
1
