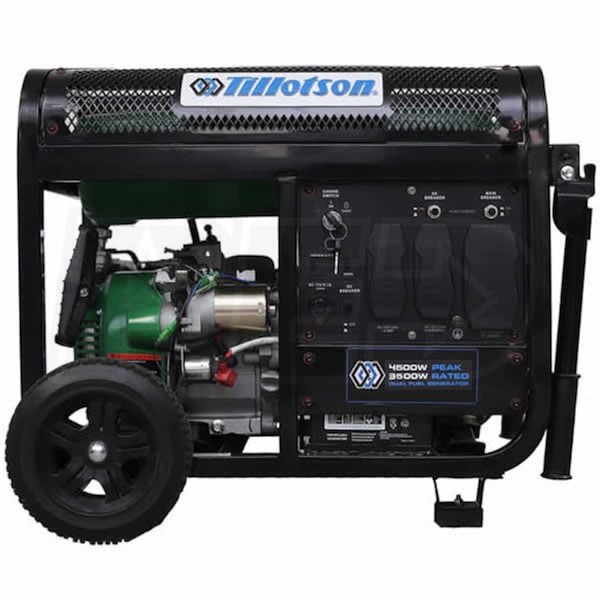

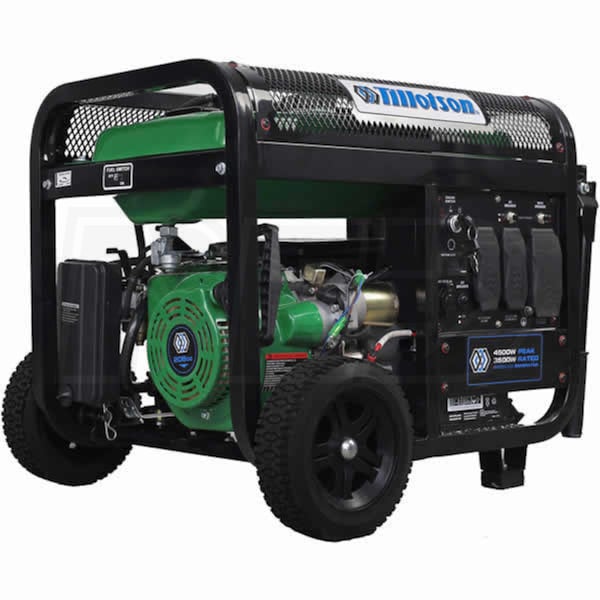

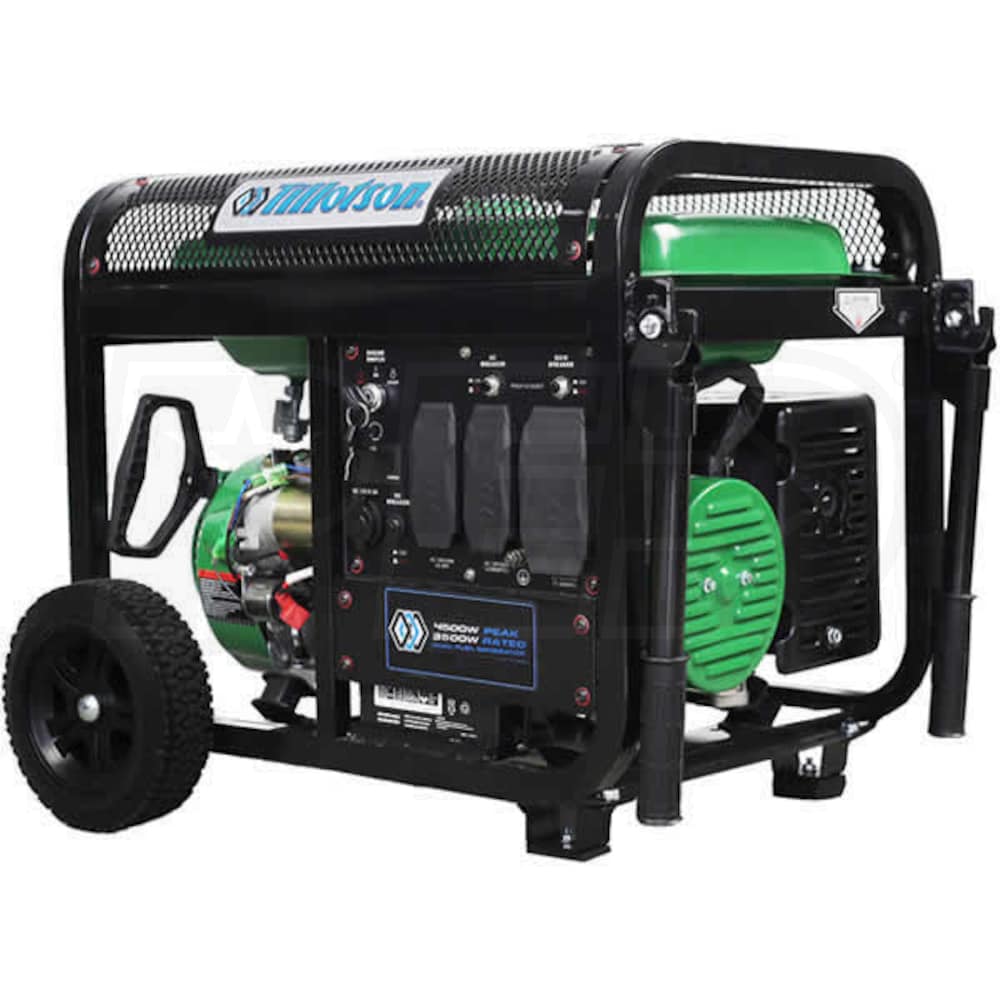

Tillotson TPP-4500DF-A - 3500 Watt Dual Fuel Electric Start Portable Generator
Model: TPP-4500DF-A
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
4
Model: 32316-UTS6H
$603.99
Only 1 In-Stock
$50.49
Only 2 In-Stock
Model: THP103
$44.99
Only 5 In-Stock
Model: THP207M
$24.99
Features
Grade
Emergency
Style
Portable
Run Watts
3,500 Rated Watts
Surge Watts
4,500
Starting Watts
Fuel
Gasoline/LP
Engine
Tillotson
- Tillotson 3500 Watt Duel-Fuel Electric Start Generator
- Reliable power wherever and whenever you need it
- 208cc Tillotson OHV 4-Stroke Engine w/ Low Oil Shutdown
- Long life, 2000+ hour modified racing engine
- Provides added safety against engine damage
- 20 or 30-lb Tank Compatible (Not Included)
- Provides up to 11 hours of run time @ 1/2 load (25 lb.)
- Long-Run, 4-Gallon Metal Fuel Tank w/ Fuel Gauge
- Provides up to 11 hours of run time @ 1/2 load
- Built-In 120V 30A RV Receptacle (TT-30R)
- Plug your RV right into outlet, no need for L5-30 adapter
- Square Tubular Steel Roll-Cage Frame w/ Diamond Grate
- Reduces vibration, provides protection & compact Storage
- XL Run-Flat Wheels & Heavy-Duty Fold-Down Handles
- Provides the mobility you need and the stability you require
- Added Features : 120V GFCI Outlets & Outlet Covers
- Circuit Breaker Protection - Safer operation for yourself & your tools
- Hour Meter to track maintenance and fuel usage
- EPA Certified - Non-CARB Compliant - Not For Sale In CA
- 2-Year Parts/1-Year Labor Limited Warranty
Specifications
Plug Types



TPP-4500DF-A

Overview
Weight
120 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Style
Portable Generator
Product Length
24.6 Inches
Product Width
17.1 Inches
Product Height
18.5 Inches
UPC
680474076741
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4500 Watts
Fuel Type
Gasoline/LP
LP Fuel Consumption @ 50% Load
0.36 gallons/hr
Rated Amps
29 Amps
Portability Kit
Never Flat Wheels
Tank Size
4 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Tillotson
Starting System
12-Volt Key Start w/ Recoil
CC
208 CC
Consumer Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Reviews
(3)
Tillotson Power Products TPP-4500DF-A Reviews & Ratings
Customer Photos and Videos


Manufacturer Review
Reliability for 100 years
By Charles Demirjian
Tillotson Power Products President
Review Posted 08/17/2015
Tillotson Power Products generators are designed for the serious user looking for advanced features and reliability. For the past 100 years, we’ve been creating and standing behind the best fuel systems for the biggest companies in virtually every power segment, including automobile, motorcycle, lawn & garden, construction, snowmobile, jet ski, outboard marine, unmanned aircraft and racing. For our entry into the consumer product market, we’ve taken that experience and created a line of portable generators that are designed to outperform everything else on the market. We’ve incorporated a modified racing engine rated at 2000+ hours into full featured generators which boast a square steel frame for enhanced stability and durability; heavy duty drop handles and large run-flat tires for easy mobility; electronic run time meter for monitoring engine service life; covered electrical outlets to protect against moisture; low oil automatic shut off to prevent engine damage and an easy-on keyed electric start with recoil option to make starting safe and easy. This model is ideal for camping and RV use as well as emergency use. In addition to its 2 GFCI covered outlets, it offers a 120V/30A RV outlet and a 12V DC plug and operates on either gasoline or a standard propane tank.
If you're not familiar with our history, you can learn more about us at tillotson.ie and see our high-performance racing products at Tillotson-racing.com. Our racing division had a major role to play in creating these generators, not only with their enhanced engines but also making them a true work of art, something you’d be proud to show off at the track, in your back yard and anywhere else. The roll-cage design with our trademark diamond grate not only looks great, but also lets you stack boxes, tools and other items on top when not in use for efficient storage. The generators can also be upgraded with our low-emission, ultra-quite TillotsonTCT carburetors, available later this year.
We stand behind our generators with our 100 year manufacturing history and a 2 year parts/1 year labor warranty. If you have any questions or need help, we’ll be here to answer your questions, or you can always email us at sales@tillotsonpower.com.
Thanks for looking!
If you're not familiar with our history, you can learn more about us at tillotson.ie and see our high-performance racing products at Tillotson-racing.com. Our racing division had a major role to play in creating these generators, not only with their enhanced engines but also making them a true work of art, something you’d be proud to show off at the track, in your back yard and anywhere else. The roll-cage design with our trademark diamond grate not only looks great, but also lets you stack boxes, tools and other items on top when not in use for efficient storage. The generators can also be upgraded with our low-emission, ultra-quite TillotsonTCT carburetors, available later this year.
We stand behind our generators with our 100 year manufacturing history and a 2 year parts/1 year labor warranty. If you have any questions or need help, we’ll be here to answer your questions, or you can always email us at sales@tillotsonpower.com.
Thanks for looking!
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Mixed Bag
By Stephen M.
Glen Head, New York
Purchased 01/21/2016 |
Review Posted 02/14/2016
Very poor literature. Couldn't find s/n for warranty card. Difficult to connect battery. Still haven't got the electric start to work. Ran fine when I finally sorted it out.
Stephen M. Does Not Recommend This
Was this review helpful?
Expert Response
Sorry about the issues. I'd try contacting Tillotson directly @ 866-591-8921.

Alberto C.
Generator Expert
Manufacturer Response
We're sorry for any issues you had. Whenever you have a problem, please do call our hotline at +1866-591-8921 or me directly at +1-312-961-8454.
Charles
Charles

Rating Breakdown
5/5
3/5
4/5
3/5
Best Fathers' Day present we ever gave
By Cathy G.
Hinsdale, Illinois
Review Posted 07/16/2015
My husband asked for a replacement generator for Fathers' Day because he didn't like the current one that we used at our cottage. The power goes out there frequently. He gave the kids (ha! - me!) the link for this Tillotson one and so we just bought it.
It's super quiet (which I noticed) and he likes it better than our Honda. My husband says it's easy to start and move from the garage to the cottage. Also, he likes the plugs and propane option. And he said it's more fuel efficient.
I just know he says it's his best Fathers' Day gift ever. Score!!
It's super quiet (which I noticed) and he likes it better than our Honda. My husband says it's easy to start and move from the garage to the cottage. Also, he likes the plugs and propane option. And he said it's more fuel efficient.
I just know he says it's his best Fathers' Day gift ever. Score!!
Cathy G. Recommends This
Was this review helpful?
Manufacturer Response
Happy Father's day and thanks for the great review! We're delighted your husband loves the generator as much as we do,
All our best,
Charles Demirjian
President
Tillotson Power Products
All our best,
Charles Demirjian
President
Tillotson Power Products

Rating Breakdown
5/5
5/5
5/5
5/5
