Features
Grade
Professional
Style
Portable
Run Watts
12,000 Rated Watts
Surge Watts
13,000
Starting Watts
Fuel
Diesel
Engine
Kohler
- 19-HP/654cc Lombardini Diesel Engine
- A workhorse on the job site
- Electric Start (Battery Sold Separately)
- Includes battery rack & cables
- Cast Iron Cylinder Liners w/ Low Oil Pressure Shutdown
- Provides added protection
- Easy Cold Weather Starting
- Glow plug kit good to -30°F
- 8-Gallon Fuel Tank Provides Extended Run Time
- 9.6 hours @ half load & 8 hours @ full load
- Professional Control Panel
- GFCI outlets, circuit breakers, volt meter and hour meter
- Smooth Wave™
- Provides <6% total harmonic distortion
- Added Features
- 1" welded steel roll cage
- Isolated and recessed control panel
- Lifting Eye
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
LR130EL
Overview
Weight
380 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
39 Inches
Product Width
26 Inches
Product Height
29.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
13000 Watts
Fuel Type
Diesel
Rated Amps
50 Amps
Tank Size
8 Gallons
Run Time @ 50% Load
9.6 Hours
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
81 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Included (400 CCA)
Grade Type
Professional
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
HP
19 HP
CC
654 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
CS6364/5 - 50-Amp Twistlock
1
Reviews
Voltmaster LR130EL Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
How to Pick the Perfect Professional Portable Generator
A professional jobsite generator gives you the portable power you need for cons...
How to Keep Your Cool After a Hurricane
We've all procrastinated before. Maybe it was for an unpleasant project th...
How to Pick the Perfect Portable Emergency Generator
We don't realize how much we rely on electricity until it's gone. Without power...
Manuals
LR130EL
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

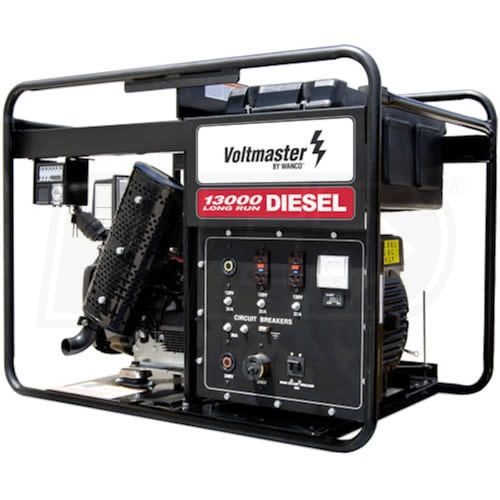

Voltmaster LR130EL - 12,000 Watt Electric Start Diesel Generator
