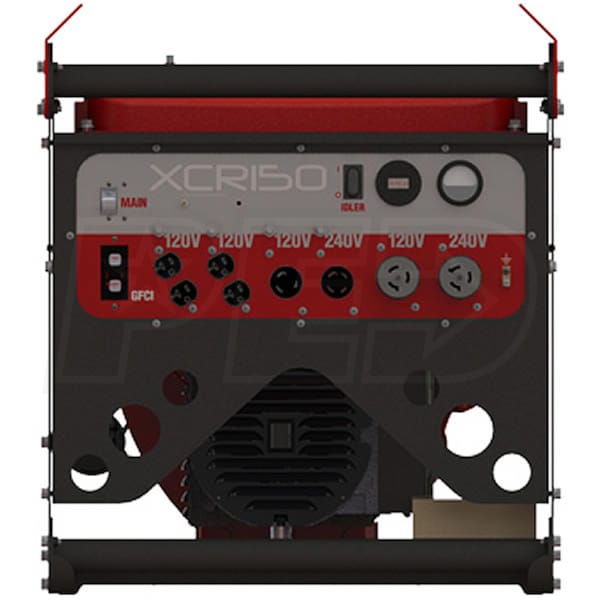

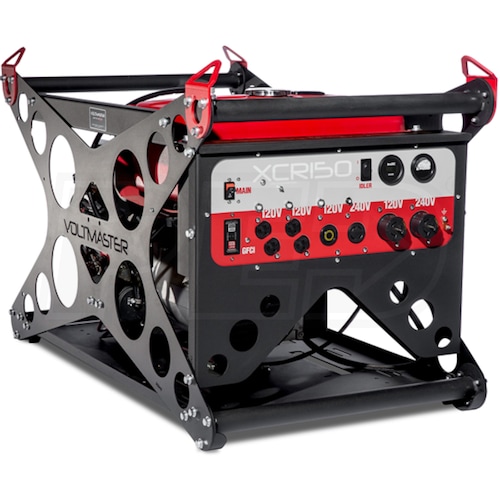

Voltmaster XCR150EV - 12,000 Watt Electric Start Professional Generator
Model:
XCR150EV
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
12,000 Rated Watts
Surge Watts
15,000
Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
- Voltmaster XCR Series Contractor/Rental Grade Generator
- Designed specifically for contractors & jobsite applications
- OSHA Compliant Total Ground Fault System
- Provides total 120/240 VAC ground-fault protection on all recps
- 23 HP Vanguard Industrial-Grade V-Twin Engine w/ Electric Start
- Quiet operation and greater fuel efficency on the job site
- Includes battery rack & cables (Battery Sold Separately)
- Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
- Shuts the engine down if oil reaches an unsafe operating level
- Idle Control & 7.25-Gallon Fuel Tank w/ Fuel Gauge
- Allows for up to 8 hours of run time @ half load
- Magnetic CB & Brush Alternator w/ All Copper Windings
- Provides safer operation & clean power; <6% harmonic distortion
- Voltmeter & Hour Meter
- Allows you to easily monitor and maintain your generator
- Heavy Duty Frame & Modular Design w/ Side Control Panel
- Provides greater protection for the engine & components
- Makes it easy to operate when truck mounted
- ***Not For Use w/ Transfer Switches or Interlock Kits***
- 1-Year Consumer/30-Day Commercial Warranty
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
XCR150EV
Overview
Weight
297 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Product Style
Portable Generator
Product Length
36.25 Inches
Product Width
23.5 Inches
Product Height
26 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
15000 Watts
Fuel Type
Gasoline
Rated Amps
50 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
23 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
NEMA 5-50R
1
CS6364/5 - 50-Amp Twistlock
1
