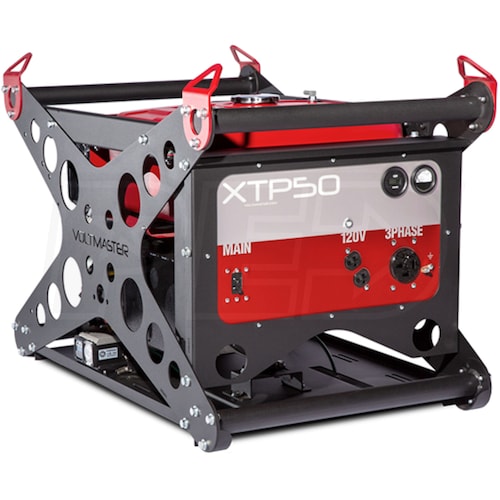

Voltmaster XTP50EH-208 - 5000 Watt Electric Start Professional Generator w/ Honda GX (120/208V 3-Phase)

Model:

XTP50EH-208

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Voltmaster XTP50EH-208 - 5000 Watt Electric Start Professional Generator w/ Honda GX (120/208V 3-Phase)
Voltmaster XTP50EH-208 - 5000 Watt Electric Start Professional Generator w/ Honda GX (120/208V 3-Phase)
Model: XTP50EH-208
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

5,000 Rated Watts

Surge Watts

5,000
Starting Watts

Fuel

Gasoline

Engine

Honda GX

  • Votlmaster XTP Series 120/208V 3-Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • 389cc Honda® GX340 OHV Commercial-Grade Engine
  • Powerful 10-HP engine starts easily & runs smoothly
  • Electric Start (Battery NOT Included)
  • Provides effortless starting on the job site
  • Protected By Honda Oil Alert® Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 7.25-Gallon Extended Run Steel Fuel Tank
  • Allows for up to 15 hours of power@ 1/2 load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Voltmeter & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Modular Design & Heavy Duty Frame
  • Provides greater protection for the engine & components
  • Side Control Panel For Easy Opeartion When Truck Mounted
  • 1-Year Consumer/30-Day Commercial Warranty
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 15-50R
XTP50EH-208
specs product image PID-17554
Overview
Weight
265 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Product Style
Portable Generator
Product Length
38.25 Inches
Product Width
23.5 Inches
Product Height
26.5 Inches
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
17 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
15 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
HP
10 HP
CC
388 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
