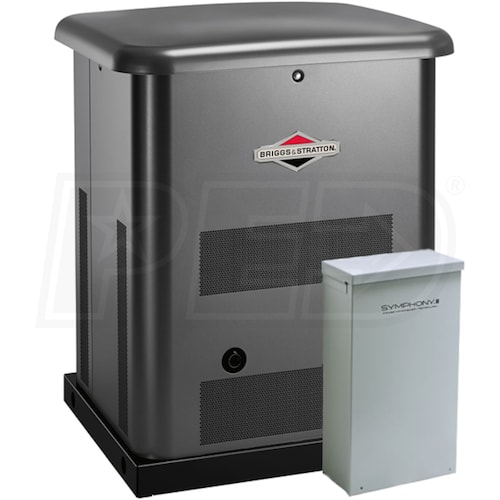

Briggs & Stratton 10kW Standby Generator System (Steel) (200A Service Disconnect + AC Shedding)

Model:

40450

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton 10kW Standby Generator System (Steel) (200A Service Disconnect + AC Shedding)
Briggs & Stratton 10kW Standby Generator System (Steel) (200A Service Disconnect + AC Shedding)
Model: 40450
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

10,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Briggs and Stratton Vanguard

  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 10kW (LP) /9kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 570cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • 200-Amp Service Entrance Rated Automatic Transfer Switch (71068)
  • Offers ability to power all circuits without a sub-panel
  • Rated at 200-Amps @ 240-Volts (NEMA 3R)
  • Symphony II Transfer Switch (2 x 3-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18" from structure
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Includes Synthetic Oil & Battery Charger
  • Industry Leading 5-Year Warranty
  • Parts, labor & travel covered for 5-Years
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

40450
specs product image PID-10337
Overview
Weight
272 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
28 Inches
Product Width
24.4 Inches
Product Height
35.1 Inches
UPC
011675404505
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
125 ft³/hr
NG Fuel Consumption @ 100% Load
211 ft³/hr
LP Fuel Consumption @ 50% Load
1.21 gallons/hr
LP Fuel Consumption @ 100% Load
1.86 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
Circuit Breaker Size
50 Amps
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
570 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
